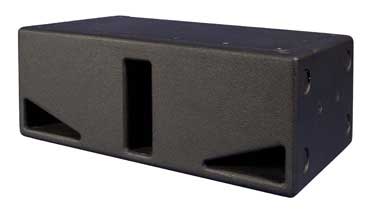

Biamp VLF208W Dual 8" Subwoofer 300W, White

Community's VLF208 is a compact dual 8" subwoofer system with a no-grille design that can be installed under stages, in walls or ceilings, or in other low profile locations in either the vertical or horizontal mounting position. Its extremely low profile enclosure is narrow enough to fit comfortably between wall studs, providing "hidden" LF extension. With a response down to 70Hz in passive mode or 60Hz using digital signal processing, the VLF208 can function in steered bass arrays, and is equipped with fly points and four rubber feet with recessed foot mounting locations on two sides.

The VLF208 is a powerful and innovative low frequency subwoofer that when arrayed is effective in reducing unwanted reflections in theatres, restaurants, auditoria, houses of worship, schools and other applications, fitting comfortably into areas where larger subwoofers are impractical.

Applications:

• Houses of Worship
• Performing arts centers
• Theaters, lecture halls
• Auditoria
• Restaurants
• The "cafegymnatorium"
• Portable bass reinforcement
• Under-stage, in-wall, under-seating and ceiling mount applications

Features:

• Low profile design, small footprint
• Designed to work as a traditional subwoofer or in steered bass arrays
• DYNA-TECH protection circuitry
• Suitable for in-wall, under-seating, under-stage and other "hidden" LFapplications
• Optional wall/ceiling mounting brackets and array brackets for multiplecluster configurations
• Available in black or white finishes
• Five-year warranty

Specifications:

• Loudspeaker Type: Compact subwoofer
• Operating Range:
  • 55Hz-400Hz
  • 60Hz-160Hz (+/-1dB) processed
• Max Input Ratings: 300W continuous, 750W program, 4 ohms
  • 35 volts RMS,77 volts momentary peak
• Recommended Power Amplifier: 630W to 900W @ 4 ohms
• Sensitivity (1W/1m): 96dB SPL (63Hz to 160Hz 1/3 octave bands)
• Maximum Output: 121 dB SPL/128 dB SPL (peak)
• Nominal Impedance: 4 ohms
• Minimum Impedance: 4.8 ohms @ 130 Hz
• Nominal -6dB beamwidth: 360° H x 180° V
• Axial Q/DI: 1/0, 60Hz to 160Hz
• Recommended Signal Processing: 55Hz high pass filter, 48 dB/Oct
• Drivers: LF (2) 8"
• Driver Protection: DYNA-TECH
• Input Connection:
  • (1) NL4-compatible locking connector
  • (1) 2conductor barrier strip
• Enclosure: 11-ply cross-laminated birch
• Finish: Black or White paint finish
• Mounting/Rigging Provisions: (8) M10 hang points
• Required Accessories: Digital signal processor
• Supplied Accessories: (4) Rubber feet
• Optional Accessories:
  • VLF-SAB steered array bracket
  • VLF-Y208 yokemounting bracket
• Dimensions: 8.25" H x 21.75" W x 13" D
• Weight: 40.7 lbs
