EAW-Eastern Acoustic Wrks UB52I
Passive 2-Way Rectangular Speaker Enclosure in Black

OUR PART #:  UB52I-BLACK

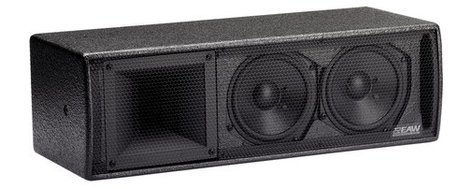

The EAW UB52I is a 2-way full range system (passive LF/HF crossover) in a compact, vented rectangular enclosure.
Learn More
Our Price: $1,155.00
Write the first review.
EAW-Eastern Acoustic Wrks UB52I
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

The EAW UB52I is a 2-way full range system (passive LF/HF crossover) in a compact, vented rectangular enclosure. Ii includes two 5.25" woofers and a 1" exit compression driver on a 90┬░ x 60┬░ constant directivity horn. It includes two 1/4"-20 threaded mounting/suspension points.

The UB52 is engineered to provide secondary full range coverage from a stage lip or apron mounting location. Also very effective as an ultra-low profile under balcony fill system. Its 6.28" height allows it to be mounted within stage steps and hidden from view.

EAW UB52I Features:

  • 2-way full range loudspeaker with compact rectangular enclosure
  • Ultra-low profile
  • 2x 5.25" woofer, vented
  • 1x 1" driver, on dual CD horn

EAW UB52I Specifications:

  • Configuration: 2-way, full range
  • Powering: Passive LF/ HF crossover
  • LF Subsystem: 2 x 5.25" vented
  • HF Subsystem: 1" exit compression driver on constant directivity horn
  • Enclosure Materials: Exterior grade Baltic birch plywood
  • Finish: Wear resistant textured black paint
  • Connectors: 2-terminal barrier strip
  • Suspension Hardware: (2) 1/4"-20 threaded mounting/suspension points (1 each side)
  • Grille: Powder-coated perforated steel
  • Frequency Response (Hz):
    • +-3dB: 98Hz to 18kHz
    • -10dB: 50 Hz
  • Axial Sensitivity (dB SPL, 1 Watt @ 1m): 91
  • Impedance (Ohms): 8
  • Power Handling (Watts, continous): AES Standard 175
  • Recommended High-Pass Frequency: 24 dB/Octave 50 Hz
  • Calculated Maximum Output (dB SPL @ 1m)
    • Peak: 119.4
    • Long Term: 113.4
  • Nominal Coverage Angle, -6dB Points (degrees)
    • Horizontal: 90
    • Vertical: 60
  • Dimensions: 6.2" H x 19.8" x 8.1" D (160 x 502 x207 mm)
  • Weight:
    • Net Weight: 19 lbs (8.6 kg)
    • Shipping Weight: 21 lbs (9.5 kg)
