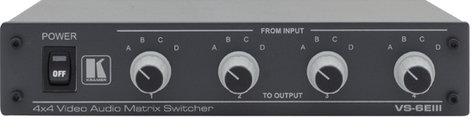

Kramer VS6EIII
Composite Video & Stereo Audio Matrix Switcher

OUR PART #:  VS6EIII

Kramer's VS-6EIII is a high performance matrix switcher for composite video and unbalanced stereo audio signals.
Learn More
Our Price: $692.00
List Price: $865.00
You save 20%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Kramer VS6EIII
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Kramer's VS-6EIII is a high performance matrix switcher for composite video and unbalanced stereo audio signals.  It can switch any or all of the four inputs to any or all of the four outputs simultaneously.

Features:

  • Bandwidth: 265MHz (- 3dB) fully loaded
  • Control: 4 rotary knobs

Specifications:

  • Inputs:
    4 composite video, 1Vpp / 75O on BNC type connectors
    4 audio stereo 1Vpp / 50kO on RCA type connectors
  • Outputs:
    4 composite video, 1Vpp / 75O on BNC type connectors
    4 audio stereo 1Vpp / 150O on RCA type connectors
  • Max. Video Output Level: 2.4Vpp/75Ohm
  • Bandwidth (-3dB):
    Video: 265MHz, Fully Loaded
    Audio: >40kHz
  • Diff. Gain: 0.05%
  • Diff. Phase: 0.05 Deg
  • S/N Ratio:
    Video: 74dB
    Audio: 66dB
  • Video Crosstalk: -44dB
  • Audio THD + Noise: 0.085%
  • Power Source: 12 VDC, 105mA
  • Dimensions: 8.44" W x 6.4" D x 1.72"H (21.44 x 16.25 x 4.36cm)
  • Weight: Approximately 3.8 lbs. (1.7 kg)
  • Accessories: Power cord
