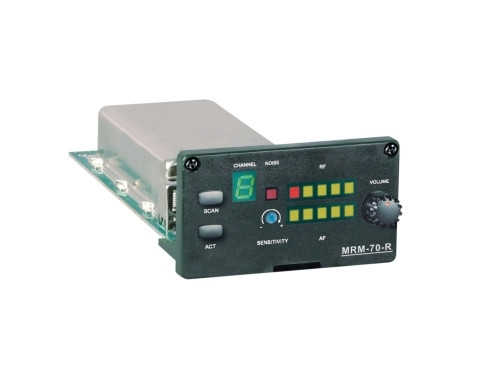

MIPRO MRM70
16-Channel Wireless UHF Receiver Module

OUR PART #:  MRM70

The Mipro MRM-70 is a wireless diversity receiver module fitted for use with their MA-705, MA-707, MA-808 portable PA systems, MA-909 wireless mixer, and more.
Learn More
Selected Model Price: $159.00
List Price: $180.00
Save up to 12%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

MIPRO MRM70
Select a Model: (shipping times are approximate)
Qty:

Similar Products

The Mipro MRM-70 is a wireless diversity receiver module fitted for use with their MA-705, MA-707, MA-808 portable PA systems, MA-909 wireless mixer, and more.  It can also fit other PA amplifiers, mixers, active powers, signal processors and other karaoke players.

NOTE: Please contact your sales representative for more information in regards to adding modules on custom-built MIPRO PA's (eligible models are listed).

UHF band and PLL technology are utilized to avoid the often congested VHF band.  Diversity and advanced circuitry are incorporated to eliminate signal dropouts and random noise interference.

Mipro MRM-70Features:

  • UHF diversity receiver with 16 automatically scanable frequencies with ACT functions
  • Press the "ACT" button to automatically upload the receiver frequency to the transmitter.
  • Once the frequency has been set, the data is stored in memory, meaning that the frequency is set until it is changed by performing the "ACT" functionagain, even after powering off.
  • Bright and easy-to-read LED displays numeric channel and RF & AF strengths
  • Receiver "Sensitivity" level can be sensitivity adjusted to overcome interference
  • Reliable true diversity reception with dual "PiloTone & NoiseLock" circuit prevents interferences
  • Output level and dynamic range accurately pre-adjusted to equal the microphone capsule's sensitivity, thus ensuring optimal performance of the system. (1.5dB tolerance)
  • Modularized design allows easy installation & maintenance

Mipro MRM-70 Specifications:

  • Frequency Range: UHF 620~950MHz
  • Oscillation Mode: PLL synthesized
  • Bandwidth: 24MHz
  • Preset Channels: 16 Non-interference channels
  • Receiving Mode: CPU-controlled Diversity Receiving
  • Squelch Control: Innovative "PiloTone & NoiseLock" dual-squelch circuit
  • Display Status: Dedicated LED display panel is clearer and more definite in displaying channel, RF and AF signal strength. Noise indicator clearly display if a receiver is under the state of interference.
  • Sensitivity: 6dBµV, at S/N>80dB
  • Maximum Deviation Range: ±68KHz
  • Spurious Emissions: <82dB
  • Frequency Response: 60Hz~15KHz±3dB (Overall system)
  • S/N Ratio: >100dBA
  • T.H.D.: <0.5% @ 1KHz (Dev.=40KHz)
  • AF Output: 610mV rms
  • Power Supply: DC 12~15V
  • Current Consumption: <190 mA
  • Working Temperature: -10~60°C
  • Dimensions: 3" W x 1.4" H x 5.6" D (75 x 35 x 141 mm)
  • Weight: 4.4 oz. (126 g)
  • Matching Transmitters: ACT-707HE, ACT-707TE

To be the first to review this item, click here.
