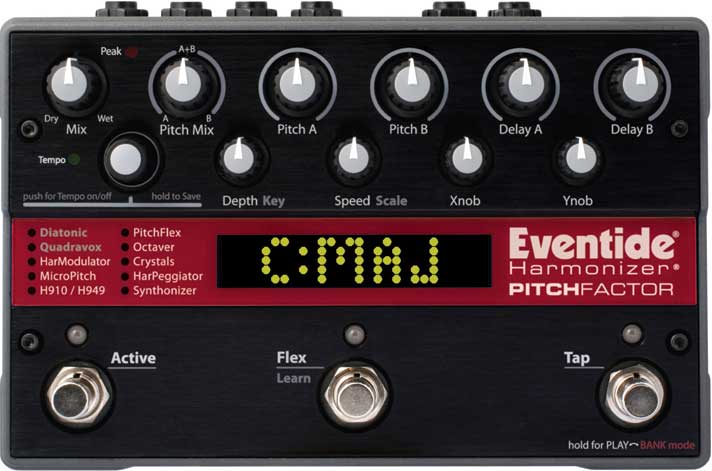

Eventide PITCHFACTOR Twin Pitch/Delay Stompbox

Through the decades, top players have depended on Eventide: Jimmy Page, Frank Zappa, Brian May, Eddie Van Halen, Steve Vai, Robert Fripp, John Petrucci, and Adrian Belew, to name a few. Now, for the first time these effects are portable AND affordable. Stompbox simple, PitchFactor fits on your pedalboard or in your gigbag.

Studio Quality Effects at Your Feet

Top recording studios worldwide use Eventide effects on hit after hit. PitchFactor includes Eventide's best pitch-changing effects from the past 36 years without compromising quality OR flexibility.

Flexibility Built-In

Plug-and-play expression pedal control of wet/dry mix or any combination of parameters. Control program changes and vary parameters continuously via MIDI. Supports instrument or line level inputs and outputs. Plays well with others; adapts seamlessly with a wide variety of amps and other foot pedals.

Obsolescence is so 20th Century

Easy to upgrade; download new software from the Internet and install via USB.

Eventide PITCHFACTOR Features:

• 10 of Eventide's signature stereo or mono pitch+delay effects:
  • Diatonic
  • PitchFlex
  • Quadravox
  • Octaver
  • HarModulator
  • Crystals
  • MicroPitch
  • HarPeggiator
  • H910/H949
  • Sythonizer
• Up to 4 voices of diatonic pitch shifting and up to 1.5 seconds of stereo delay
• Studio quality sound
• Guitar or bass compatible
• Built-in tuner
• Software upgradeable via USB 2.0
• MIDI control via USB or MIDI in, out/thru
• Instant program change
• Real-time control with 10 knobs, MIDI, or expression pedal
• Tap tempo and MIDI clock sync
• 100 factory presets, unlimited through MIDI
• True analog bypass
• Rugged cast metal construction
• Reliable metal footswitches for instant preset access
• Mono or stereo operation
• Guitar or line level inputs and outputs

Eventide PITCHFACTOR Specifications:

• Analog Input/Output:
  • Input Impedance: 500k ohms
  • Output Impedance: 470 ohms
  • Recommended Load Impedance: 10k ohms or greater
• Connectors:
  • Input 1 (mono): 1/4" mono phone jack
  • Input 2: 1/4" mono phone jack
  • Output 1 (mono): 1/4" mono phone jack
  • Output 2: 1/4" mono phone jack
  • Expression Pedal: 1/4" mono phone jack
  • Aux Switch: 1/4" stereo phone jack
  • USB: Type B Socket. Use 2.0 cables only
  • MIDI In: Five pin DIN (Female)
  • MIDI Out/Thru: Five pin DIN (Female)
  • AC Adapter Jack: Power Supply included
• Physical:
  • Power: 9 VDC, 1200 mA, tip hot (+)
  • Dimensions (H x W x D): 4.8" x 7.5" x 2.12"
  • Weight: 2.15 lbs
