Daking MIC-PRE-ONE Mic Preamp, Class A Fully Discrete, Jensen Transformer

OUR PART #: MIC-PRE-ONE MFR #: Mic Pre One

Copied to clipboard

Sharing the gain structure and Class A, fully discrete transistor circuitry design of the popular Daking Mic Pre IV... ...Read more

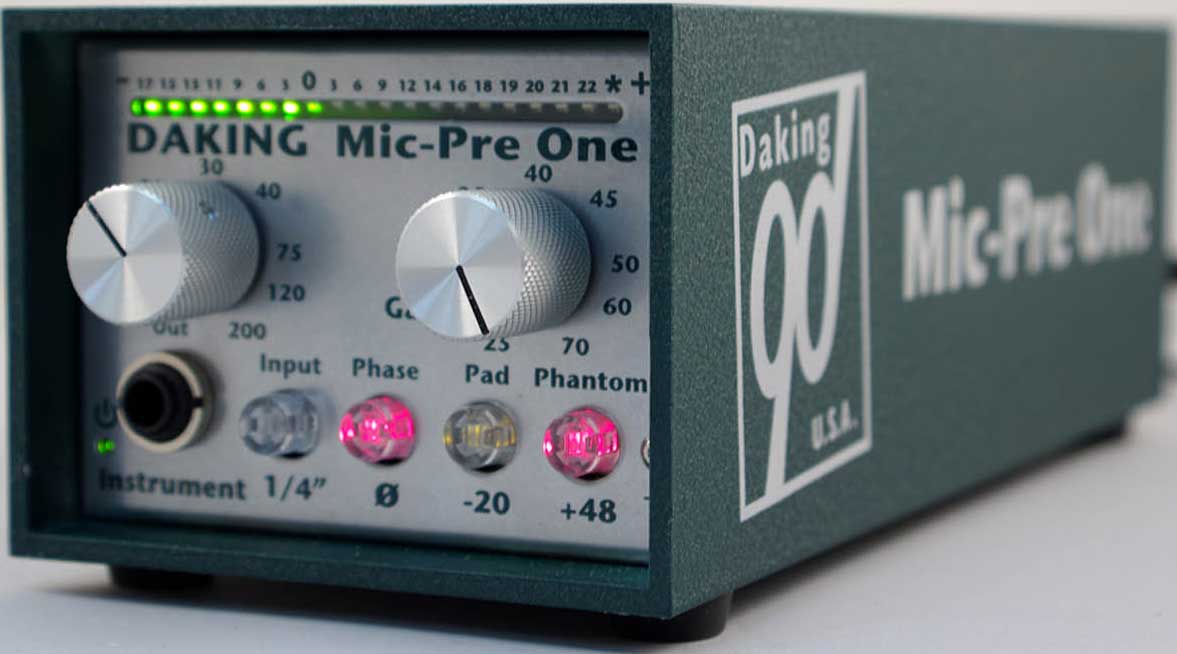

Daking MIC-PRE-ONE Mic Preamp, Class A Fully Discrete, Jensen Transformer Image 1
Daking MIC-PRE-ONE Mic Preamp, Class A Fully Discrete, Jensen Transformer Image 2
Daking MIC-PRE-ONE Mic Preamp, Class A Fully Discrete, Jensen Transformer
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

Sharing the gain structure and Class A, fully discrete transistor circuitry design of the popular Daking Mic Pre IV, the Mic Pre One additionally features a unique variable high-pass filter and ships in a freestanding 'DI-style' steel enclosure, ensuring both strength and noise immunity. Essentially a single channel of the Mic Pre IV, the Mic Pre One features switchable phase, 20dB mic input pad and +48V phantom power, plus a selectable 1/4" front panel hi-z instrument input, all utilizing relays with gold bi-furcated contacts. Two large knurled aluminum knobs control the variable high-pass filter (0-200Hz) and continuously variable input gain, which is complemented by a full-width, twenty-segment bi-color LED meter.

The rear of the unit offers a Jensen transformer-isolated mic input and fully-balanced XLR output, plus a 1/4" line output. A fourth connector introduces DC power from the external power supply to the unit.

Features

  • Class "A" circuitry
  • Jensen transformer
  • Discrete transistor design
  • Single-sided amplification
  • Lead free
  • RoHS compliant

Specifications

  • Microphone Input:
    • Transformer balanced
    • 70dB gain
    • 20dB pad
    • 48 volt phantom power
    • Phase reverse
  • Instrument Input:
    • Front panel TRS
  • Output:
    • +24 XLR and 1/4" TRS Out
    • Smart balanced
  • High Pass Filter:
    • Continuously Variable from 10Hz to 200Hz
    • 12dB per octave
  • Meter:
    • 20 segments with VU ballistics and peak
