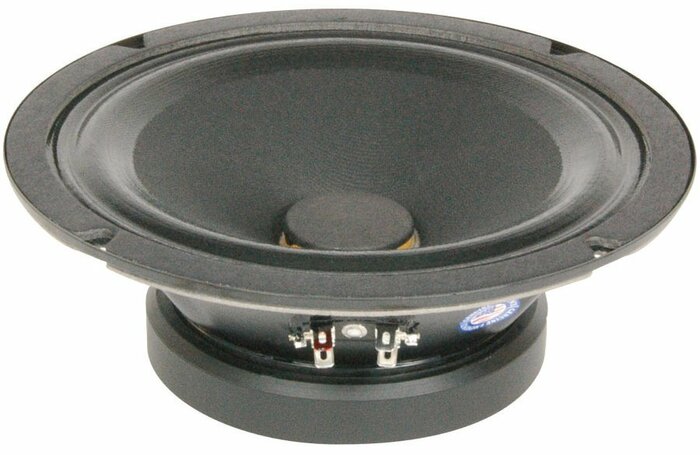

Eminence ALPHA-8MRA 8" Midrange Woofer

Recommended for pro audio and bass guitar applications as a midrange. Sealed basket makes this woofer independent of enclosure design.

Specification

• Nominal Basket Diameter 8", 203.2mm
• Nominal Impedance* 8 ohms
• Power Rating**
• Watts 125W
• Music Program 250W
• Resonance 514Hz
• Usable Frequency Range 400Hz - 4.8kHz
• Sensitivity*** 100.9dB
• Magnet Weight 20 oz.
• Gap Height 0.25", 6.35mm
• Voice Coil Diameter 1.5", 38.1mm
• Mounting Information
• Recommended Enclosure Volume
• Sealed N/a
• Vented N/a
• Driver Volume Displaced 35.3 cu.in. / 0.58 liters
• Overall Diameter 8.22", 208.8mm
• Baffle Hole Diameter 7.19", 182.5mm
• Front Sealing Gasket Fitted as standard
• Rear Sealing Gasket Fitted as standard
• Mounting Holes Diameter 0.22", 5.5mm
• Mounting Holes B.C.D. 7.78", 197.6mm
• Depth 3.25", 83mm
• Net Weight 4.4 lbs, 2 kg
