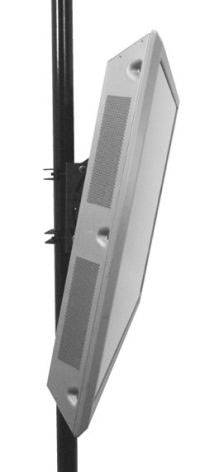

Chief Manufacturing TPMUB
Mount, Flat Panel Tilt Pole Mount

OUR PART #:  TPMUB

Quick, easy and versatile, the Truss/Pole Static Mounts...
Learn More

Add to Cart to See Price

Chief Manufacturing TPMUB
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Quick, easy and versatile, the Truss/Pole Static Mounts, Pole Tilt-Adjustable Mounts and Truss Tilt-Adjustable Mounts are often used for mounting the large flat panel displays used in exhibit, retail and digital signage.

  • Clamps for different size poles and truss work are required and must be ordered separately (see TPK kits and chart)
  • Three Mount Options: Truss/Pole Static Mount, Pole Pitch-Adjustable Mount, and Truss Pitch-Adjustable Mount
  • Three Tilt Adjustment Options on TPM and TPP: +/- 15 º tilt on gravity centered axis point, lockable tilt, pre-set tilt locking points at 0º, 5º, 10º and 15 º to quickly and easily align multiple displays
  • Install mount horizontally and use pitch adjustment for side-to-side pivot.
  • Install on vertical or horizontal truss
  • Attach displays in portrait or landscape orientation
  • TPS/TPP span most truss systems up to 14" (OD)
  • Truss/Pole clamps fit a wide variety of truss and pole dimensions
  • Finishing Cover accessories enhance aesthetics and cover hardware for added security
  • Exclusive Q-Latch Mounting System secures the Large Flat Panel Display with a lockable latch
  • Screen can be installed in portrait or landscape orientation ( PAC400 or MAC400 accessory can be used to rotate without removing the screen)
  • Integrated security allows display to be locked to mount by adding a padlock
  • Compatible with TPK clamp accessories. See Accessory list below.

Specifications:

  • Overall Dimensions (W x H x D):  16.79" x 16.69" x 3.38" (411 x 424 x 86 mm ) Depth does not include screen interface (typically 1" or less)
  • Tilt Adjustment:  +/- 15º
  • Compatibility:  Interface brackets are compatible with all other 2000 Series products
  • Color:  Black
  • Weight Capacity:  150 lbs ( 68.03 kg) - Mount capacity only; be sure pole or truss structure is capable of supporting the weight
