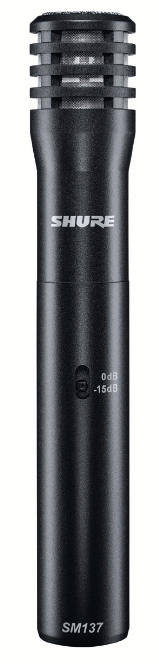

Shure SM137-LC Cardiod Condenser Instrument Microphone

OUR PART #: SM137LC MFR #: SM137-LC

Copied to clipboard

The SM137 is a versatile, flat-response cardioid condenser probe microphone. ...Read more

Shure SM137-LC Cardiod Condenser Instrument Microphone Image 1
Shure SM137-LC Cardiod Condenser Instrument Microphone
Our Price: $189.00
List Price: $239.00
You save 21%!

SPECIAL FINANCING AVAILABLE

Synchrony Music & Sound Card
$6/mo* with 36 month financing. ‡
Limited Time. Learn How

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

The SM137 is a versatile, flat-response cardioid condenser probe microphone. This professional cardioid instrument condenser microphone offers natural sound reproduction in both acoustic and high volume performance applications. Features include a thin diaphragm, a Class-A preamplifier, pad for performance consistency, and low self-noise. The SM137 has an ultra-thin diaphragm for a frequency response that combines a smooth high-end with a tight, controlled low-end and a 15db pad for natural sound reproduction in both acoustic and high volume performance applications.

Includes

  • SM137 Condenser Microphone
  • Swivel Adapter
  • Zippered Pouch

Features

  • Cardioid polar pattern to reduce the pickup of unwanted sounds
  • Ultra-thin, 2.5 μm 24 karat gold-layered, low mass Mylar® diaphragm for superior transient response
  • Class A, discrete, transformerless preamplifier for transparency, extremely fast transient response, no crossover distortion, and minimal harmonic and intermodulation distortion
  • Premium electronic components, including gold-plated internal and external connectors
  • Two-position switchable pad (0 dB and 15 dB) for handling extremely high sound pressure levels (SPLs)

Specifications

  • Type: Electret Condenser
  • Frequency Response: 20 to 20,000 Hz
  • Polar Pattern: Cardioid
  • Output Impedance: 150 Ω (actual)
  • Sensitivity (at 1 kHz, open circuit voltage): -41 dBV/Pa[1]
  • Maximum SPL, (1 kHz at 1% THD)
    • 1000 Ω load: 139 dB (154 dB, PAD ON)
    • 2500 Ω load: 144 dB (159 dB, PAD ON)
  • Signal-To-Noise Ratio (Ref. 94 dB SPL at 1 kHz): 75 dB[2]
  • Dynamic Range (at 1 kHz)
    • 1000 Ω load 120 dB
    • 2500 Ω load 125 dB
  • Common Mode Rejection (10 Hz to 100 kHz): >50 dB
  • Clipping Level (20 Hz to 20 kHz, at 1% THD[3])
    • 1000 Ω load 3 dBV
    • 2500 Ω load 9 dBV
  • Self Noise (typical, equivalent SPL, A-weighted): 19 dB
  • Attenuator Switch: -15 dB
  • Polarity: Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3
  • Net Weight: 195 g (6.9oz.)
  • Connector: Three-pin professional audio (XLR), male
  • Power Requirements: 48 V DC phantom power, 5.2 mA

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Product Documents

Click to download
