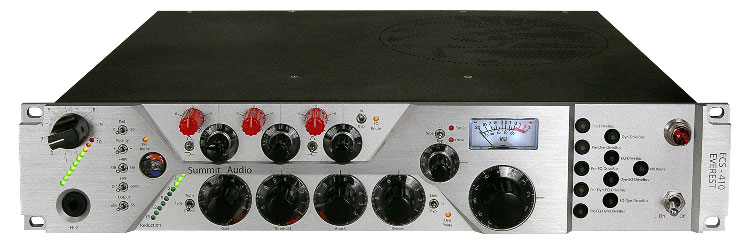

Summit Audio ECS-410
Channel Strip Everest

OUR PART #  ECS410

Our Price: $3,999.99
(Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

Summit Audio's ECS-410 Everest Channel Strip is a distinctly different, four section analog processor and microphone preamp, ideal for tracking, recording, and processing your most important signals. Each section is completely independent with its own fully balanced IO with the ability to route each section together internally with TouchPatch™, a unique and amazingly intuitive routing section.

Four complete products, amalgamated into one master channel strip:

  • Mz2- Microphone and Instrument Preamplifier
  • Dc1- Dual Mode Dynamics Control
  • Fe1- Passive Three Band Equalizer
  • Db2- Drive Bus Master Output and Drive Section

Features:

  • Discrete 4 section analog channel strip with tube/solid state preamp, passive EQ, dual mode dynamics, DriveBus output, TouchPatch™ routing
  • Single touch routing with TouchPatch™
  • Each section has independent balanced inputs and outputs for total flexibility
  • Completely variable sound from open and pristine to total overdrive

Specifications:

Mz2- Microphone and Instrument Preamplifier

  • Max gain: +60dB (plus 20dB when routed through the Db2 drive bus output)
  • THD+N (@ +30dB): 0.008% (A weighted), 0.01% (unweighted)
  • Max Out: +25dB
  • Frequency Response: Solid State 10Hz-200kHz +/- 3dB; 15Hz-120K +/-0.5dB; Tube 15Hz-159K +/-3dB, 15Hz-65Hz +/-0.5dB
  • Input impedance: 2K ohms
  • Type: Switchable tube (12AX7A) or discrete transistor
  • HPF: 60Hz, 6dB/8va
  • Metering: 10 segment LED
  • Phantom Power +48VDC
  • Pad: -20dB
  • Polarity: 0 or 180 degrees
  • IO: Balanced XLR mic in, front panel 1/4" Hi-Z in, balanced XLR +4dB (nominal) out,
  • 1/4" TRS -10dB(nominal)

Fe1- Passive 3 Band Equalizer

  • Frequency Response: 5Hz- 100kHz +/-0.5dB , 5Hz- >200kHz +/-3dB
  • Cut/Boost: +/- 12dB per band
  • Low shelf: 6dB/8va, peaking bandwidth 2 octaves
  • Mid peaking bandwidth: 2 octaves
  • High shelf: 6dB/8va, peaking bandwidth 2 octaves
  • IO: balanced XLR +4dB in and out

Dc1- Dual Mode Compressor

  • Frequency Response: 5dB >200kHz +/- 3dB, 5Hz-136kHz +/-0.5dB
  • Gain: -4dB to +10dB
  • Attack: variable from
  • Release: variable from
  • Ratio: Classic Tight
  • Metering: 10 segment LED for gain reduction
  • IO: Balanced XLR +4dB in and out, 1/4" side chain, 1/4" stereo link

Db2- Drive Bus Master Output and Overdrive

  • THD+N (@+4dB, no cut or boost):
  • Bypass: 0.002% (A weighted), 0.008% (unweighted)
  • Tube: 0.3% to overdrive (unweighted)
  • Solid State: 0.013% to overdrive (unweighted)
  • Frequency Response: Solid State 5Hz- > 200kHz +/- 3dB, 5Hz-130kHz +/- 0.5dB
  • Gain: +20dB
  • Type: Tube (12AX7A) or discrete transistor
  • Metering: analog VU output level
  • IO: balanced XLR +4dB in and out, -10dB 1/4" TRS out

Summit Audio ECS-410
Channel Strip Everest

OUR PART #  ECS410

Product Information:

Summit Audio's ECS-410 Everest Channel Strip is a distinctly different, four section analog processor and microphone preamp, ideal for tracking, recording, and processing your most important signals. Each section is completely independent with its own fully balanced IO with the ability to route each section together internally with TouchPatch™, a unique and amazingly intuitive routing section.

Four complete products, amalgamated into one master channel strip:

  • Mz2- Microphone and Instrument Preamplifier
  • Dc1- Dual Mode Dynamics Control
  • Fe1- Passive Three Band Equalizer
  • Db2- Drive Bus Master Output and Drive Section

Features:

  • Discrete 4 section analog channel strip with tube/solid state preamp, passive EQ, dual mode dynamics, DriveBus output, TouchPatch™ routing
  • Single touch routing with TouchPatch™
  • Each section has independent balanced inputs and outputs for total flexibility
  • Completely variable sound from open and pristine to total overdrive

Specifications:

Mz2- Microphone and Instrument Preamplifier

  • Max gain: +60dB (plus 20dB when routed through the Db2 drive bus output)
  • THD+N (@ +30dB): 0.008% (A weighted), 0.01% (unweighted)
  • Max Out: +25dB
  • Frequency Response: Solid State 10Hz-200kHz +/- 3dB; 15Hz-120K +/-0.5dB; Tube 15Hz-159K +/-3dB, 15Hz-65Hz +/-0.5dB
  • Input impedance: 2K ohms
  • Type: Switchable tube (12AX7A) or discrete transistor
  • HPF: 60Hz, 6dB/8va
  • Metering: 10 segment LED
  • Phantom Power +48VDC
  • Pad: -20dB
  • Polarity: 0 or 180 degrees
  • IO: Balanced XLR mic in, front panel 1/4" Hi-Z in, balanced XLR +4dB (nominal) out,
  • 1/4" TRS -10dB(nominal)

Fe1- Passive 3 Band Equalizer

  • Frequency Response: 5Hz- 100kHz +/-0.5dB , 5Hz- >200kHz +/-3dB
  • Cut/Boost: +/- 12dB per band
  • Low shelf: 6dB/8va, peaking bandwidth 2 octaves
  • Mid peaking bandwidth: 2 octaves
  • High shelf: 6dB/8va, peaking bandwidth 2 octaves
  • IO: balanced XLR +4dB in and out

Dc1- Dual Mode Compressor

  • Frequency Response: 5dB >200kHz +/- 3dB, 5Hz-136kHz +/-0.5dB
  • Gain: -4dB to +10dB
  • Attack: variable from
  • Release: variable from
  • Ratio: Classic Tight
  • Metering: 10 segment LED for gain reduction
  • IO: Balanced XLR +4dB in and out, 1/4" side chain, 1/4" stereo link

Db2- Drive Bus Master Output and Overdrive

  • THD+N (@+4dB, no cut or boost):
  • Bypass: 0.002% (A weighted), 0.008% (unweighted)
  • Tube: 0.3% to overdrive (unweighted)
  • Solid State: 0.013% to overdrive (unweighted)
  • Frequency Response: Solid State 5Hz- > 200kHz +/- 3dB, 5Hz-130kHz +/- 0.5dB
  • Gain: +20dB
  • Type: Tube (12AX7A) or discrete transistor
  • Metering: analog VU output level
  • IO: balanced XLR +4dB in and out, -10dB 1/4" TRS out
