Product Overview

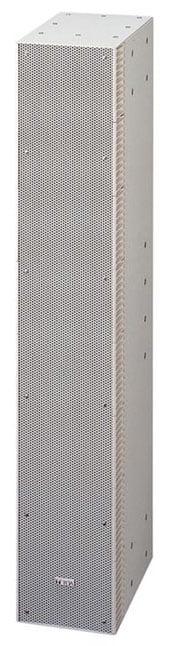

The TOA compact SR-S Series Slim Line Arrays are the ideal choice for applications requiring clear speech intelligibility such as houses of worship, AV presentation and educational facilities. The SR-S4L (long-throw) speaker offers eight 4" cone drivers and twenty-four 1" balanced dome tweeters, all aligned to form a continuous linear sound source. Options include weather resistant models, multiple mounting hardware options and 70V transformer. The SR-S Series are backed with a five year warranty.
Includes:
- Bi—amplifier drive rating label
- Bi—amplifier drive input indication label
Features:
- Slim compact design ideal for speech applications
- Low visual profile fits into demanding settings
- Highly controlled coverage yields improved intelligibility
- Multiple drivers (8 LF, 24 HF) for high sensitivity and power handling
- In-line driver arrangement for superior vertical coverage control
- All drivers share the same horizontal axis for best horizontal dispersion
- Horizontal coverage remains broad through speech range- 100°.
- High power handling: 600W cont. (200W, 24 hr. pink noise)
- SR-S4L Long-throw (0°V x 90°H)
- Components: (8) 4" cone drivers; (24) 1" balanced dome tweeters
- Full-range with built-in crossover or biamp
- Power handling: 600W cont.
- High sensitivity: up to 99dB, 1w @ 1m (500 to 5,000Hz)
- Weather-resistant versions available
- Five-year warranty
Specifications:
- Enclosure: Bass-reflex type
- Power Handling Capacity
- Continuous program: 600W (singIe-amp mode)
- Low: 240W, High 240W (bi-amp mode)
- Rated Impedance: 8Ω (singIe-amp mode)
- Low: 8 (2, High 8Ω (bi-amp mode)
- Sensitivity: 94dB (1W, 1m)
- Frequency Response: 70 — 20,000Hz (when using DP-0206 (option)
- Crossover Frequency: 3,500Hz
- Directivity Angle: Horizontal: 90°, Vertical: 0° (within the range of speaker height)
- Speaker Component Low frequency: 10cm cone—type X 8
- High frequency. 2.5cm balanced dome—type X 24-
- Input Connector M5 screw terminal, distance between barriers: 12.2mm and Neutrik NL4MP X 2
- Finish Enclosure: MDF, white, paint
- Front grille: Punched steel plate, white, acrylic paint
- Dimensions 160mm (W) X 895mm (H) X 255mm (D)
- Weight: 16kg
