Product Overview

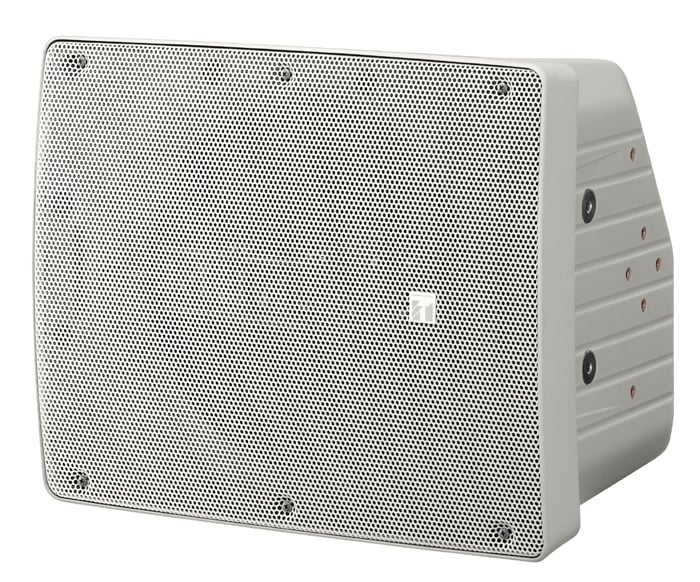

The TOA HS-1200 speaker system is designed to provide high quality sound and reliable performance for restaurants, retail, conference rooms, lecture halls, schools, sports facilities, houses of worship and audio/visual applications.
Features include two-way bass-reflex design, rugged polypropylene enclosure with a 12" low frequency driver and coaxial tweeter array incorporating six balanced dome tweeters. HS Series speakers provide narrow-directivity control (90° horizontal x 40° vertical). The model includes a user attachable lifting handle and rubber feet for straight positioning. Backed with a five year warranty.
Features:
- High quality sound
- Coaxial tweeter array incorporating six balanced dome tweeters
- Narrow-directivity control (90° horizontal x 40° vertical)
- Built-in overload protection circuitry for the tweeters
- Model:
- Twin input terminal connections
- SPEAKON terminal for quick temporary installation
- Screw terminals recommended for long-term installation
- Compact light weight enclosure
- Wedge-shape enclosure enables use as a floor monitor
- Screwdriver-adjustable impedance selection
- Low impedance (8Ω)
- 70 / 100V operation
- + 70V selectable 60W, 30W, 15W or 7.5W
- +100V selectable 60W, 30W or 15W
- Provided attachable accessories
- Handle for easy transportability
- Rubber feet for straight positioning
- Five year warranty
Specifications:
- Enclosure: Sealed type
- Rated Input: 60W (High Impedance)
- Power Handling Capacity:
- Continuous pink noise: 100W (Low Impedance)
- Continuous program: 300W (Low Impedance)
- Rated Impedance: 8Ω
- 100V line: 170Ω (60W), 330Ω (30W), 670Ω (15W)
- 70V line: 83Ω (60W), 170Ω (30W), 330Ω (15W), 670Ω (7.5W)
- Sensitivity: 97dB (1W @ 1m)
- Frequency Response: 70 - 20,000Hz
- Crossover Frequency: 3kHz
- Directivity Angle: Horizontal: 90°, Vertical: 40°
- Speaker Component:
- Low frequency: 30 cm (12") cone-type
- High frequency: Balanced dome tweeter × 6
- Input Terminal: NEUTRIK NL4MP Speakon and M4 screw terminal, distance between barriers: 9 mm (0.35")
- Operating Temperature: -10°C to +50°C (14°F to 122°F)
- Finish:
- Enclosure: Polypropylene, black
- Punched net: Surface-treated steel plate, black
- Dimensions: 361 (W) × 448 (H) × 320 (D) mm (14.21" × 17.64" × 12.6")
- Weight: 10kgs (22.05lbs)
