Doug Fleenor Designs ES2 Entry Station Two
with 2 User-Assignable Buttons

OUR PART #:  ES2-FLEENOR

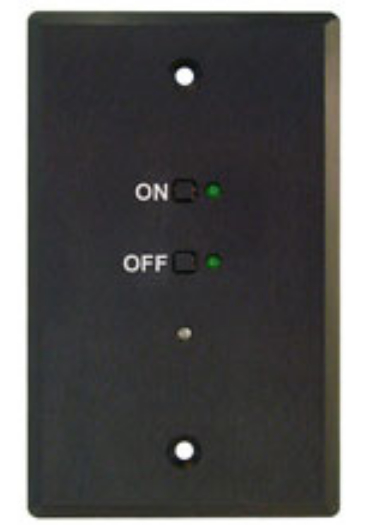

Doug Fleenor Design's Entry Station Two is a simplified entry station with two user assignable buttons.  The buttons can be associated with any preset on the master.
Learn More
Our Price: $487.62
List Price: $602.00
You save 19%!
Write the first review.
Doug Fleenor Designs ES2 Entry Station Two
Qty:
In Stock

Related Products

Doug Fleenor Design's Entry Station Two is a simplified entry station with two user assignable buttons.  The buttons can be associated with any preset on the master.  Presets are recalled by pressing one of the buttons.

Entry Station Two is integrated as a slave in systems with master and power supply.  The solid aluminum faceplate is designed to install over a standard single-gang electrical box.  Connections to the Entry Station Two are power (2 wires) and DMX512 (3 wires).  Power for the Entry Station Two can be supplied from a variety of sources, including a 10V class 2 "doorbell" transformer.

NOTE: The ES2 is a slave station only It must be used in conjunction with a Preset 10 Architectural or Rerun Architectural operating as a master station.

Doug Fleenor Designs ES2 Entry Station Two Specifications:

  • Connector: Phoenix Contact MSTB series 5-position two-part terminal block
  • Connector pin out:
    • 1 (C) DMX512 common
    • 2 ( -) DMX512 data -
    • 3 (+)DMX512 data +
    • 4 (C) Supply common (internally tied to pin1)
    • 5 (V) Supply voltage"hot"
  • Input/Output circuit: ESD protected EIA-485 transceiver (LT1785)
  • Indicators:
    • Two green preset indicator LEDs
    • One bi-color Lockout (red), Time (yellow) & Inactive (green)
  • User controls: Two preset push buttons
  • Option jumpers: When removed sets preset button address
  • Power input: 9 to 24 volts DC or 6 to 16 volts AC / 200mA per station (A 10 volt class 2 "doorbell" transformer is recommended for fixed installations)
  • Color: Black anodized with optional laser engraving
  • Dimensions (HxWxD):
    • Face Plate: 4.5" x 2.75" x 0.2"
    • Face Plate Rear Inset: 4.15" x 2.4" x 0.1"
    • Electrical Box Minimum Inside Dimensions: 3.5" x 2.1" x 1.25"
