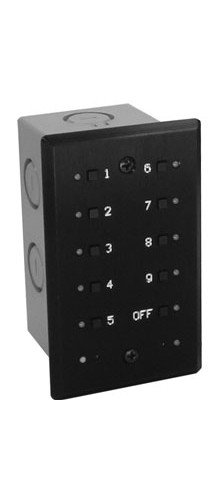

Doug Fleenor Design PRE10-A-POPO 10-Button Push-on / Push-off Wall Mounted DMX Controller

The Doug Fleenor Design Preset 10 Architectural is a DMX512 playback device that can take up to ten snapshots from a DMX console and play them back at the press of a button. Fade times can be set from 0 to 999 seconds (default is 2 seconds).

There are two versions of software available: PRE10A and PRE10A-POPO. The original PRE10A offers "Radio Button" operation, where only one preset may be active at time. The new PRE10A-POPO offers ten HTP presets. Each of these ten HTP presets are capable of being turned ON or OFF individually.

Doug Fleenor Design Preset 10 Architectural Specifications:

• Connector: Phoenix Contact MSTB series 5-position two part terminal block
• Connector pin out:
  • 1 - DMX512 common
  • 2 - DMX512 data -
  • 3 - DMX512 data +
  • 4 - Negative supply
  • 5 - Positive supply
• Input/Output circuit: ESD protected EIA-485 transceiver (LT1785)
• Indicators:
  • Ten green preset indicator LEDs
  • One red Lockout / Record LED
• User controls:
  • Ten preset push buttons
  • One recessed record push button
  • One recessed fade time push button
• Power input: 9 to 16 volts AC or DC / 150 mA per station (A 10 volt class "doorbell" transformer is recommended for fixed installations)
• Color: Black Anodized, With Silver Engraved Nomenclature
• Size:
  • Faceplate (HxWxD): 4.5" x 2.75" x 0.2"
  • Faceplate Rear Inset (HxWxD): 4.05" x 2.4" x 0.1"
  • Electrical Box Minimum Inside Dimensions (HxWxD): 3.5" x 2.1" x 1.25"
