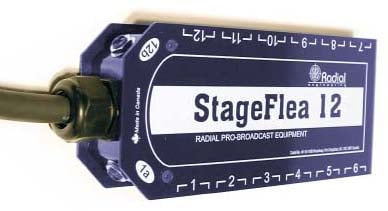

OUR PART # R487-1200
Compact stage box with (12) FXLR and (2) 1/4" TRS connectors. TRS connectors are labeled "A" and "B" and are wired in parallel with channels 1 & 12. Radial Torsion 12-pair cable with a splay of (12) MXLR or multi-pin connector.
The StageFlea is a small format professional snake designed to last a lifetime. Available in 6 to 16 channel configurations with some models featuring return channels. The StageFlea is ideal for extending inputs from a main snake to zones such as drum and keyboard risers. By itself the StageFlea's compact size makes it well suited for small PA setups in clubs, churches and schools.
The StageFlea's box is the ultimate in ergonomic signal distribution. The side mounted XLR connectors make for a low profile and the clam-shell box design allows easy servicing. All StageFlea models are available with extra heavy-duty reinforcement at the fanout for rental and touring users.
StageFlea snakes come standard with premium Radial Torsion™ multi-pair cable. The StageFlea box can be wired for alternate uses like headphone breakout, speaker distribution, video, or custom AV connector combinations.
