ETC/Elec Theatre Controls R20
Dual 20A 120V Relay Module

OUR PART #:  R20-ETC

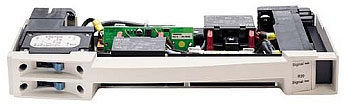

The Relay Module is a dual, plug-in mechanical relay assembly for use in the Unison Dimming Series rack enclosures.
Learn More
Our Price: $500.00

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

ETC/Elec Theatre Controls R20
Qty:
In Stock

Similar Products

The Relay Module is a dual, plug-in mechanical relay assembly for use in the Unison Dimming Series rack enclosures. Each Relay Module provides two electrically held relays, in the same form factor as standard dimmer modules. This enables designers to mix and match dimmer and relays for control of diverse loads. The 120V Relay Module has a 100,000A short circuit current rating (SCCR), and is UL and cUL listed for continuous duty at 100% of rated load. The aluminum chassis is finished with textured epoxy paint. This relay module is ideal for control of non-dimmable load types such as HID lamps.

Applications:

  • Designed for use in Unison 100-120V Unison DRd rack enclosures
  • High Intensity Discharge ballasts (Metal Halide and High Pressure Sodium)
  • Non-dimmed On/Off loads
  • Motors
  • Power for fans and standard outlets
  • Moving lights, fog machines and other powered effects

Features:

  • Two 2.4kW circuits per module
  • Level-activated mechanical relays
  • High-density modular assembly
  • Die-cast aluminum chassis
  • Fully magnetic circuit breaker

Electrical Ratings:

  • 100,000A Short Circuit Current Rating (SCCR)
  • Module withstands hot-patching of cold loads up to full rating
  • UL and cUL LISTED

Relays:

  • 20 amp, level-activated mechanical relay
    -Rated for 200,000 full loadactivations
    -Rated for 5 million no load activations
  • Rated for 1.50HP at 20.0A
  • Rated for 20A General Purpose, 10A Tungsten and 1.5 HP Motor Maximum

Power Device

  • Sealed, patented assembly
  • 4000V isolation between control and power components
  • Integral bonded heatsink
