Audio-Technica AEW-R4100C
Wireless Diversity Receiver, C band

OUR PART #:  AEW-R4100C

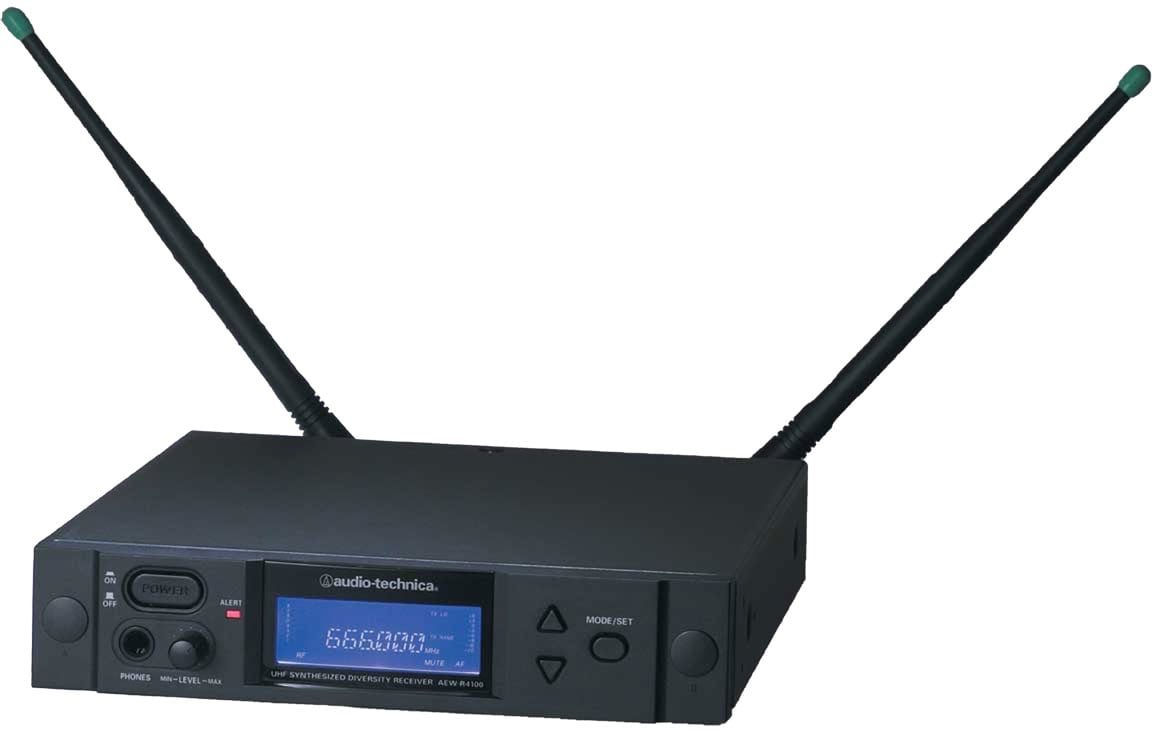

At the heart of the 4000 Series is a rugged True Diversity half-rack receiver, the AEW-R4100, with two hundred selectable channels offered in each of two available UHF bands.
Learn More
Our Price: $739.00
Write the first review.
Audio-Technica AEW-R4100C
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

At the heart of the 4000 Series is a rugged True Diversity half-rack receiver, the AEW-R4100, with two hundred selectable channels offered in each of two available UHF bands. Receivers from both the 4000 and 5000 Series may belinked; they may be monitored by the 5000 Series system software. The included IntelliScan feature automatically determines and sets the best available frequencies on all linked receivers.

Specifications

  • Operating Frequencies: UHF Band C: 541.500 to 566.375 MHz
  • Number of Channels: 200 total per band
  • Frequency Stability: FM
  • Normal Deviation: +/-5kHz
  • Operating Range: 300' typical
  • Operating Temperature: 41° F (5° C) to 113° F (45° C)
  • Frequency: Response: 70Hz to 15kHz
  • Receiving System: Dual independent RJ sections, automatic-switching diversity
  • Image Rejection: 60dB typical
  • Signal-to-Noise Ratio: 115dB at 40kHz deviation (IEC-weighted, 75kHz maximum modulation)
  • Total Harmonic Distortion: <=1% (10kHz deviation at 1kHz)
  • Sensitivity: 20 dBµV (S/N 70 dB at 5kHz deviation, IEC-weighted)
  • Intermediate Frequency: 65.75 MHz, 10.7 MHz
  • Audio Output - Microphone: (ATTN switch at "0"): 25 mV (at 1kHz, +/-5kHz deviation, 10k ohm load)
  • Audio Output - Instrument: (ATTN switch at "0"): 50 mV (at 1kHz, +/-5kHz deviation, 10k ohm load)
  • Audio Output Attenuator (ATTN): Three-position switch: 0/-6/-12 dB
  • Output Connectors (Microphone): XLRM-type (balanced)
  • Output Connectors (Instrument): 1/4" TS unbalanced phone jack
  • Headphone Output
    Connector: 1/4" TRS (stereo) phone jack
    Power Output: 10mW + 10mW at 1kHz, +/-5kHz deviation into 32 ohms
    Maximum Output: 220mW + 220mW into 32 ohms
  • Antenna Power: DC 10V-12V, 20 mA (BNC-type jack)
  • Power Supply: 100-240V AC 50/60 Hz; 8W
  • Dimensions (W x H x D): 8.31" x 1.74" x 9.26"
  • Net Weight: 3.8 lbs
  • Accessories Included: Detachable IEC-type AC power cable; two flexible UHF half-wave antennas; link cable; rack-mount adapters

Consumer Alert

This particular wireless microphone device operates in portions of the 617-652 MHz or 663-698 MHz frequencies. Beginning in 2017, these frequencies are being transitioned by the Federal Communications Commission (FCC) to the 600 MHz service to meet increasing demand for wireless broadband services. Users of this device must cease operating on these frequencies no later than July 13, 2020. In addition, users of this device may be required to cease operations earlier than that date if their operations could cause harmful interference to a 600 MHz service licensee’s wireless operations on these frequencies. For more information, visit the FCC’s wireless microphone website at www.fcc.gov/wireless-microphones-guide or call the FCC at 1- 888-CALL-FCC (TTY: 1-888-TELL-FCC).
