Kramer 6410N
Digital-Analog Format Converter

OUR PART #:  6410N

Kramer's 6410N is a high performance format converter for digital audio signals.
Learn More
Our Price: $668.00
List Price: $835.00
You save 20%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Kramer 6410N
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

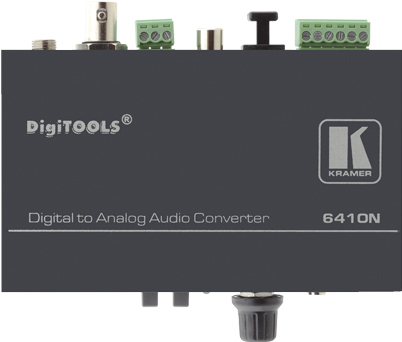

Kramer's 6410N is a high performance format converter for digital audio signals. The unit converts AES/EBU, AES-ID3, S/PDIF or Toslink® optical digital audio signals to two channels of balanced audio and a headphone output.

Features:

  • S/N Ratio: 88dB
  • Standards: AES/EBU, AES-ID3, S/PDIF, Toslink® Optical
  • Sampling: 32, 44.1, 48, & 96KHz
  • Standard Selector: Professional or Consumer
  • Reclocking & Equalization: Automatic
  • Left & Right Gain Conversion Control: 0dB, +12dB, +16dB, +20dB or +24dB
  • Input Selector
  • Volume Control: Headphone output
  • Compact DigiTOOLS®: 3 units can be rack mounted side-by-side in a 1U rack space with the optional RK-3T rack adapter

Specifications:

  • Inputs: 4 digital audio inputs: AES 75?; AES/EBU; S/PDIF; TosLink Optical
  • Outputs: 2 analog outputs: balanced line out on detachable terminal blocks; 3.5mm headphone jack
  • Sample Rate Conversion: 32kHz, 44.1kHz, 48kHz, 96kHz
  • Conversion Gain: +12dB, +16dB, +20dB,+24dB
  • Bandwidth (+4dBu/-3dBu): 20Hz to 22kHz
  • Maximum Output Level: 11.2Vpp @1kHz
  • S/N Ratio: 88dB
  • Audio T.H.D. + Noise: -92dB
  • Audio 2nd Harmonic: 0.003%
  • Controls: Input selector buttons, 8 gain switches, headphones level rotary control knob, 2 LEDs: ON and LINK
  • Power source: 12V DC/1.25A, 150mA
  • Dimensions: 4.72" W x 2.74" D x 0.96" H (12cm x 6.95cm x 2.44cm)
  • Weight: approximately 0.66 lbs. (0.3 kg)
  • Accessories: Power supply, mounting bracket
  • Separately Sold Options: 19" rack adapters
