Product Overview

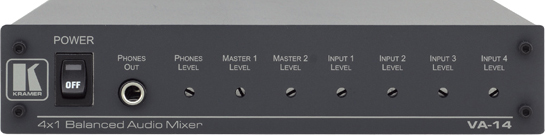

Kramer's VA-14 is a high performance 4-channel mixer for mono balanced audio signals on XLR connectors. The unit inputs 4 channels of any combination of balanced, line or microphone level audio signals, and outputs to 2 balanced mixed audio outputs and a headphone signal output.
Features
- S/N Ratio - Mic in, phones out: 45.3db. Line in, phones out: 83.3dB. Line in, line out: 84.3dB. Mic in, line out: 64dB.
- Inputs - 4 line or microphone level (individually selectable).
- Outputs - 2 line or microphone level (Individually selectable) - 1 phone output.
- Phantom Power - 48V DC on each input (individually selectable).
- Level (Gain) Control - Individual for each input & master and headphone output.
- Desktop Size - Two units can be rack mounted side-by-side in a 1U rack space with the optional RK-1 universal rack adapter.
Specifications
- Inputs: 4 balanced audio, Line or Mic, on female XLR connectors
- Outputs:
- 2 audio, balanced on a male XLR connector
- One headphone output on a 6.5mm connector
- Maximum Output Level:
- Line: 20Vpp
- Phones: 4.5Vpp
- Mic: 300mVpp
- Bandwidth (-3dB): > 40 kHz
- S/N Ratio:
- Mic in, Phones Out: 45.3dB
- Line In, Phones Out: 83.3dB
- Line In, Line Out: 84.3dB
- Mic In, Line Out: 64dB
- Crosstalk (all hostile): Mixed inputs
- Controls:
- Line In, Line Out: < -57dB to -14.3dB
- Mic In, Line Out; < 0dB to 60.5dB
- Line In, Phones Out: < -47dB to -18dB
- Mic In, Phones Out: < 0dB to 58.9dB
- In level and master/phones level, min to max position for both
- Line In, MIC OUT range: < -50dB to -25dB
- Mic In, Mic Out range:< 0dB to 21.6dB
- Underside slide switches: inputs: Line/Mic and +48V phantom ON/OFF
- Outputs: Line/Mic
- Coupling In: AC; out: bal line/mic – DC; phones, AC
- AudioT.H.D.+ Noise:
- Line In, Line Out: 0.007%; Mic In, Line Out: 0.15%
- Line In, Phones Out: 0.085%
- Mic In, Phones Out: 0.38%
- Audio 2nd Harmonic:
- Line In, Line Out: 0.001%; Mic In, Line Out: 0.005%
- Line In, Phones Out: 0.009%; Mic In, Phones Out: 0.024%
- Power Source: 12 V, 250mA DC
- Dimensions: 8.46" W x 6.38" D x 1.73" H (21.5 x 16.2 x 4.4 cm)
- Weight: Approximately 3.1 lbs. (1.4 kg)
- Accessories: Power supply
- Options: 19" rack adapter
