Quam SYSTEM-21
Blind Mount Speaker System (White)

OUR PART #:  SYSTEM-21

Quam's SYSTEM 21 is a complete, blind mount loudspeaker system for hard ceiling applications. It consists of an 8C10PAX-8" O.D. dual cone loudspeaker with a 10 oz.
Learn More
Our Price: $46.58
List Price: $67.90
You save 31%!
Write the first review.

Related Products

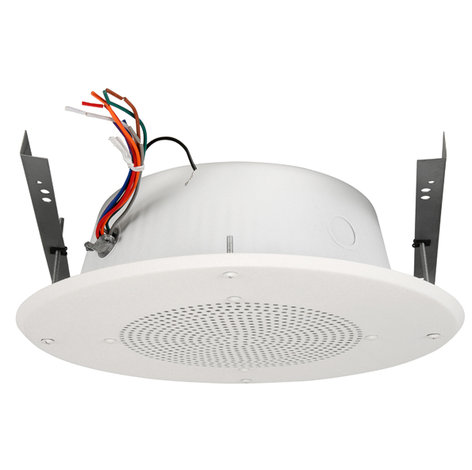

Quam's SYSTEM 21 is a complete, blind mount loudspeaker system for hard ceiling applications. It consists of an 8C10PAX-8" O.D. dual cone loudspeaker with a 10 oz. magnet and a TBLU - 5W-25/70V transformer. Loudspeaker and transformer are mounted on a BR8W - round, steel, screw mount baffle along with an ERD8U - 275 CID, round, steel back box. White powder coat finish.

Quam SYSTEM 21 Includes:

  • Loudspeaker: 8C10PAX
  • Transformer: TBLU-5W, 25/70/7V, 5 taps at -3dB levels
  • Baffle: BR8W
  • Back can: ERD8U

Quam SYSTEM 21 Features:

  • Baffle Finish: White baked epoxy hybrid
  • Intended Use: Indoor environment
  • Program Material: Paging & background music

Quam SYSTEM 21 Specifications:

  • Speaker Size: 8" frame
  • Average Sensitivity: 95 dB-SPL, 1W/ 1M
  • Loudspeaker Power: 20W RMS, EIA 426A Standard Rating
  • Calculated Maximum System Output: 102 dB-SPL, 5W / 1M
  • Frequency Response: 60Hz - 17 kHz EIA 426A Standard
  • Nominal Coverage Angle: 90° Included angle, -6dB
  • 2 kHz, half space
  • Audio Connection: 7' color-coded pigtails, tinned and pre-cut
  • Electrical Access: 1/2" clamp for flexible conduit, side-mount
