Milab DC-196
Multipattern Condenser Microphone with Large Rectangular Dual Membrane Capsule

OUR PART #  DC-196

Selected Model Price: $1,489.00
(Low Price Guarantee)
Select model: (shipping times are approximate)

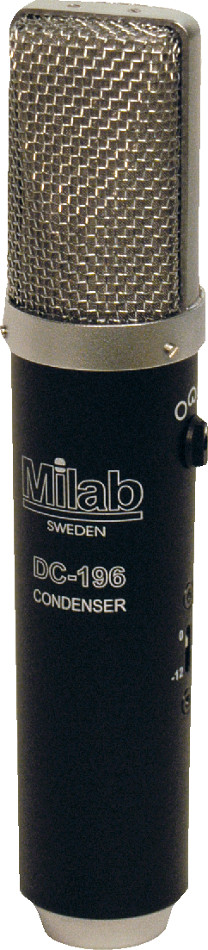

Milab's DC-196 is a multipattern condenser microphone with a large rectangular dual membrane capsule.  Comes in white or black finishes.


  • Variable pattern microphone: Cardioid, omni and figure eight
  • Small-format mic with rectangular large dual membrane capsule
  • Built-in pop protection
  • -12 dB pre-attenuation
  • Shock-absorbing rubber-fitted capsule
  • Recommended for studio or live vocals and instruments


  • Frequency response:  20 Hz - 20 kHz
  • Sensitivity @ 1kHz:  21.5 mV / Pa +/- 2 dB
  • Switchable pre-attenuation:  -12 dB
  • Maximum SPL (1% THD @ 1kHz):  132/144 dB
  • A-weighted noise level (IEC 179-A):  12dB
  • Power supply:  48 V +/- 4 V phantom
  • Output impedance:  < 200 Ohms
  • Minimum load impedance:  1 kOhm
  • Connection:  3-pin XLR
    • Pin 1:  Earth (Shield)
    • Pin 2:  Plus (Hot)
    • Pin 3:  Minus (Cold)
  • Net weight:  230g
  • Length:  145 mm
  • Diameter:  27 mm
Milab's Marketing Manager Mattias Strömberg discusses the Milab DC-196 at Full Compass

Milab DC-196 Multi-Pattern Condenser Microphone overview at Full Compass Systems with Milab Marketing Manager Mattias Strömberg
Milab's DC-196 is a crystal-clear, multi-purpose microphone built for vocals and instruments in both the studio and live performances, and packs a high-quality, large-membrane capsule into a small format microphone about the size of an iPhone.
