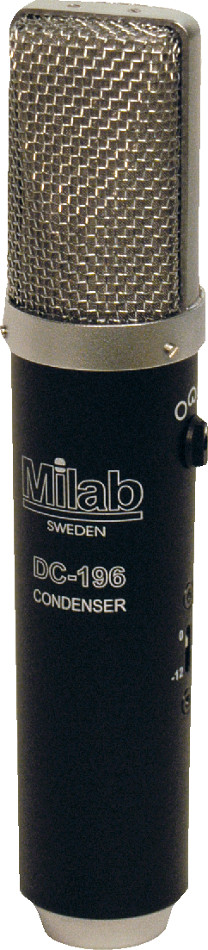

Milab DC-196
Multipattern Condenser Microphone with Large Rectangular Dual Membrane Capsule

OUR PART #:  DC-196

Milab's DC-196 is a multipattern condenser microphone with a large rectangular dual membrane capsule.  Comes in white or black finishes.
Learn More
Selected Model Price: $1,489.00
List Price: $1,649.00
Save up to 10%!
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Milab DC-196
Select model: (shipping times are approximate)
Qty:

Similar Products

Milab's DC-196 is a multipattern condenser microphone with a large rectangular dual membrane capsule.  Comes in white or black finishes.

Features:

  • Variable pattern microphone: Cardioid, omni and figure eight
  • Small-format mic with rectangular large dual membrane capsule
  • Built-in pop protection
  • -12 dB pre-attenuation
  • Shock-absorbing rubber-fitted capsule
  • Recommended for studio or live vocals and instruments

Specifications:

  • Frequency response:  20 Hz - 20 kHz
  • Sensitivity @ 1kHz:  21.5 mV / Pa +/- 2 dB
  • Switchable pre-attenuation:  -12 dB
  • Maximum SPL (1% THD @ 1kHz):  132/144 dB
  • A-weighted noise level (IEC 179-A):  12dB
  • Power supply:  48 V +/- 4 V phantom
  • Output impedance:  < 200 Ohms
  • Minimum load impedance:  1 kOhm
  • Connection:  3-pin XLR
    • Pin 1:  Earth (Shield)
    • Pin 2:  Plus (Hot)
    • Pin 3:  Minus (Cold)
  • Net weight:  230g
  • Length:  145 mm
  • Diameter:  27 mm
