Audio-Technica BP4073 9.17" Line + Gradient Condenser Shotgun Microphone

OUR PART #: BP4073 MFR #: BP4073

Copied to clipboard

The BP4073 condenser short shotgun microphone adds virtually no heft to the end of a fish pole or the top of a minicam... ...Read more

Audio-Technica BP4073 9.17" Line + Gradient Condenser Shotgun Microphone Image 1
Audio-Technica BP4073 9.17" Line + Gradient Condenser Shotgun Microphone Image 2
Audio-Technica BP4073 9.17" Line + Gradient Condenser Shotgun Microphone
Our Price: $749.00

SPECIAL FINANCING AVAILABLE

Synchrony Music & Sound Card
$21/mo* with 36 month financing. ‡
Limited Time. Learn How
Item usually available to ship in 5-9 Business Days. Please call for up-to-date information on product availability.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

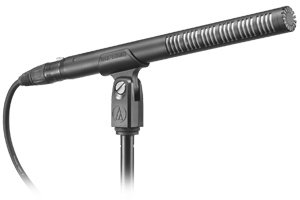

The BP4073 condenser short shotgun microphone adds virtually no heft to the end of a fish pole or the top of a minicam, thanks to a weight of only 3.5 ounces and an overall length of only 9.17". Featuring an innovative Audio-Technica design, created after intensive field research as well as attentiveness to user feedback, the mic's interference tube provides a narrow acceptance angle, effective for long-distance pickup. Highly directional, it has low self-noise and extremely focused sound recording, ideal for creating a high-quality audio sound recording in the field. Additionally, it's fully RoHS compliant — free from all specified substances in the EU directive on the reduction of hazardous substances (RoHS).

Applications

Documentaries • Professional recordings in the wild • Theater sound reinforcement • Other highly directional audio pickup applications

Includes

  • BP4073 microphone
  • AT8405a stand clamp for ⅝"-27 threaded stands
  • ⅝"-27 to ⅜"-16 threaded adapter
  • AT8147 windscreen
  • Two O-rings
  • AT8144 Protective carrying case

Features

  • Designed for use in broadcasting, film/TV production and theater sound reinforcement applications
  • Direct-coupled, balanced output ensures a clean signal even in high-output conditions
  • Innovative acoustic design provides same directivity as mics up to 50% longer
  • Switchable 80Hz hi-pass filter and 10dB pad
  • Rugged housing made of lightweight structural-grade aluminum alloy
  • RoHS-compliant – free from all substances specified in the EU directive on the reduction of hazardous substances (RoHS)

Specifications

  • Element: Externally-polarized (DC bias) capacitor
  • Polar Pattern: Line + gradient
  • Frequency Response: 20 - 20,000Hz
  • Low Frequency Roll-Off: 80Hz, 12dB/octave
  • Open Circuit Sensitivity: -29dB (35.5mV) re 1V @ 1Pa
  • Impedance: 50Ω
  • Maximum Input Sound Level: 141dB SPL, 1kHz @ 1% T.H.D.; 151dB SPL, with 10dB pad (nominal)
  • Noise: 13dB SPL
  • Dynamic Range (typical): 128dB, 1kHz @ Max SPL
  • Signal-to-Noise Ratio: 81dB, 1kHz @ 1Pa
  • Phantom Power Requirements: 48VDC, 4.8mA typical
  • Switches: Flat, roll-off, 10dB pad (nominal)
  • Weight: 3.5oz.
  • Dimensions (L x max. body Dia): 9.17" x 0.83"
  • Output Connector: Integral 3-pin XLRM-type
  • Note: further information can be found within the items located under the "Documentation" tab above.
