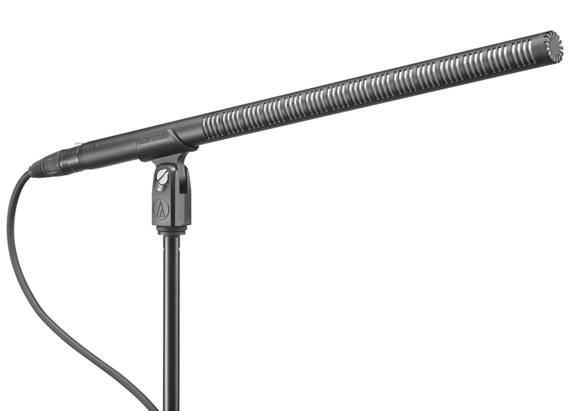

Audio-Technica BP4071 15.55" Line + Gradient Condenser Shotgun Microphone

Specially-engineered to meet the capture demands of audio professionals worldwide, the BP4071 features an interference tube design pioneered by Audio-Technica which delivers directivity that matches mics that are up to 50% longer. It's particularly suitable for long-distance sound recording in filmmaking or in theatre, as well as in "spot" miking techniques in the music studio or theater as well. It offers a low noise level and a balanced, direct-coupled output resulting in a clean and clear signal, even in high-output conditions.

Applications

Broadcast • Film • Television • Recording outdoors • Theater applications • "Spot" miking techniques in-studio or theater • More

Includes

• BP4071 microphone
• AT8405a stand clamp for ⅝"-27 threaded stands
• ⅝"-27 to ⅜"-16 threaded adapter
• AT8145 windscreen
• Two O-rings
• Protective carrying case

Features

• Designed for use in broadcasting, film/TV production, and theater sound reinforcement applications
• Direct-coupled, balanced output ensures a clean signal even in high-output conditions
• Innovative acoustic design provides the same directivity as mics up to 50% longer
• Rugged housing made of lightweight structural-grade aluminum alloy
• Transformerless design for improved pickup of transients
• Switchable 80Hz high-pass filter and 10dB pad
• RoHS-compliant - free from all substances specified in the EU directive on the reduction of hazardous substances (RoHS)

Specifications

• Element: Externally polarized (DC bias) capacitor
• Polar Pattern: Line + gradient
• Frequency Response: 20 - 20,000Hz
• Low Frequency Roll-Off: 80Hz, 12dB/octave
• Open Circuit Sensitivity: -29dB (35.5mV) re 1V @ 1Pa
• Impedance: 50Ω
• Maximum Input Sound Level: 141dB SPL, 1kHz @ 1 % T.H.D.; 151dB SPL, with 10dB pad (nominal)
• Noise: 13dB SPL
• Dynamic Range (typical): 128dB, 1kHz @ Max SPL
• Signal-to-Noise Ratio: 81dB, 1kHz @ 1Pa
• Phantom Power Requirements: 48VDC, 4.8mA, typical
• Switches: Flat, roll-off, 10dB pad (nominal)
• Weight: 4.8oz.
• Dimensions (L x max. body Dia): 15.55" x 0.83"
• Output Connector: Integral 3-pin XLRM-type
• Note: further information can be found within the items located under the "Documentation" tab above.
