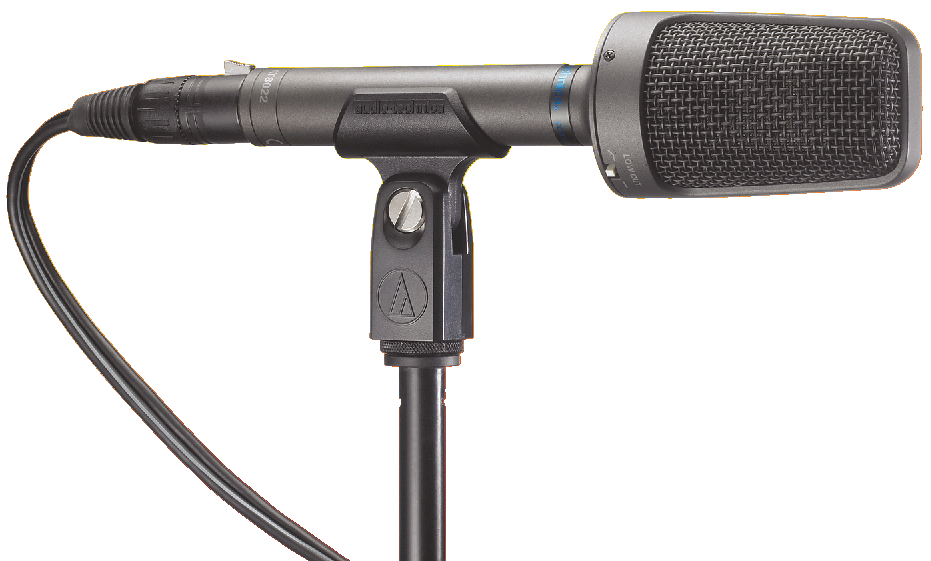

Audio-Technica AT8022
XY Stereo Condenser Microphone with Cables

OUR PART #:  AT8022

Ideal for video camera-mount use, stereo field recording, interviews and home recording...
Learn More
Our Price: $399.00

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Audio-Technica AT8022
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Ideal for video camera-mount use, stereo field recording, interviews and home recording, Audio-Technica's versatile AT8022 stereo condenser offers a compact housing and the pristine sound quality of a live sound field. Its coincident capsule configuration produces an X/Y stereo image in a small housing. The microphone is supplied with two cables for use with either pro or consumer gear. It offers switchable low-frequency roll-off and the convenience of battery or phantom power. The microphone is fully RoHS-compliant - free from all substances specified in the EU directive on the reduction of hazardous substances (RoHS).

Audio-Technica AT8022 Features:

  • Innovative capsule configuration produces accurate stereo image in smaller housing
  • Compact, lightweight design is perfect for video camera-mount use as well as for stereo field recording, interviews and home recording
  • Ideal for use with handheld digital recording devices
  • Operates on battery or phantom-power - for use with pro or consumer equipment
  • Switchable low-frequency roll-off
  • Includes two cables: one balanced (two 3-pin XLRM-type connectors at output); one unbalanced (3.5mm TRS at output)
  • RoHS-compliant - free from all substances specified in the EU directive on the reduction of hazardous substances (RoHS)

Audio-Technica AT8022 Specifications

  • Element:  Fixed-charge back plate permanently polarized condenser
  • Polar Pattern:  X/Y stereo
  • Frequency Response:  20 Hz - 15 kHz
  • Low Frequency Roll-Off:  80Hz, 12dB/octave
  • Open Circuit Sensitivity:
    • Phantom:  -38dB (12.5 mV) re 1V at 1 Pa
    • Battery:  -38dB (12.5 mV) re 1V at 1 Pa
  • Channel Balanced:  <2.5 dB
  • Impedance:
    • Phantom:  250 ohms
    • Battery:  300 ohms
  • Maximum Input Sound Level:
    • Phantom:  128 dB SPL, 1 kHz at 1% T.H.D.
    • Battery:  120 dB SPL, 1 kHz at 1% T.H.D.
  • Dynamic Range (Typical):
    • Phantom:  109 dB, 1kHz at Max SPL
    • Battery:  101 dB, 1kHz at Max SPL
  • Signal-to-Noise Ratio:  75 dB, 1 kHz at 1Pa
  • Phantom Power Requirements:  11 - 52V DC, 2 mA typical (each channel)
  • Battery Type:  1.5V AA/UM3
  • Battery Current/Life:  0.7 mA/700 hours typical (alkaline)
  • Switch:  Battery On/Off; Flat, roll-off
  • Weight:  8.7 oz
  • Dimensions:
    • 7.32" long
    • 1.87" head diameter
    • 0.83" maximum body diameter
  • Output Connector:  Integral 5-pin XLRM-type
  • Cables:
    • Balanced:  6.5' long, 8 conductor, shielded, vinyl-jacketed stereo cable with 5-pin XLRF-type connector at microphone end and two 3-pin XLRM-type connectors at output end
    • Unbalanced:  2' long stereo cable with 5-pin XLRF-type connector at microphone end and 3.5mm TRS connector at output end
  • Accessories Furnished:
    • AT8405a stand clamp for 5/8"-27 threaded stands
    • Windscreen
    • Battery
    • Soft protective pouch
