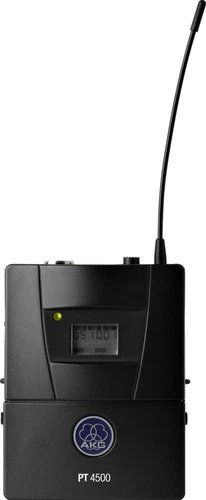

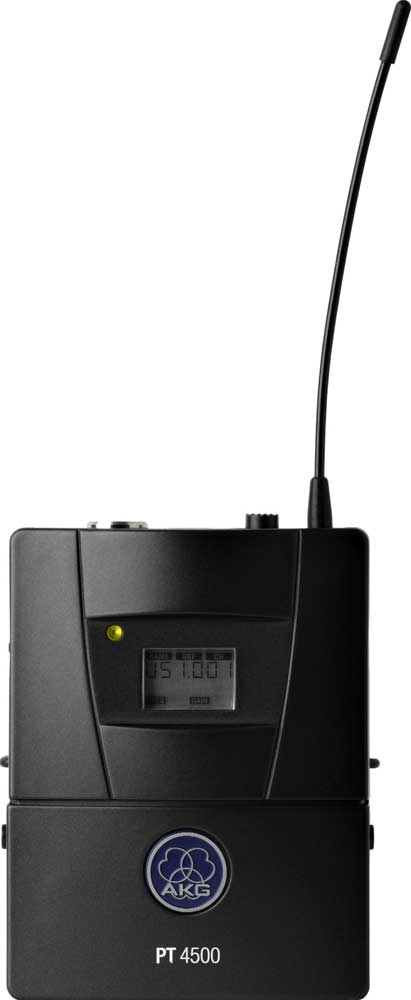

AKG PT4500
UHF Wireless Bodypack Transmitter

OUR PART #:  PT4500

Bodypack transmitter with rugged rugged aluminium body.
Learn More
Selected Model Price: $439.00
List Price: $549.00
Save up to 20%!
Write the first review.
AKG PT4500
Select a Model: (shipping times are approximate)

Related Products

Bodypack transmitter with rugged rugged aluminium body. The 30 MHz wide UHF band provides up to 1200* selectable frequencies, and several preset frequency banks for various countries help you set up a multichannel system very quickly.

A backlit display makes it very easy to tune the PT 4500 to the same frequency as the SR 4500 receiver. A pilot tone system continuously sends transmitter data including MUTE switch position and remaining battery life to the receiver. Integrated charging contacts let you charge the optional BP 4000 battery pack without having to remove it from the transmitter. After only one hour, the battery pack will be fully charged and you can use the transmitter for 12 hours continuously. The 3-pin mini XLR input with adjustable gain accommodates both portable instruments and a variety of AKG microphones for every application.

An optional RMS 4000 remote mute switch allows the user to mute the transmitter without having to fumble for the on-board mute switch.

The PT 4500 is fully compatible to its predecessor PT 4000. It offers two additional frequency bands in the range of 500 to 530 and 570 to 600 MHz, which give you even more flexibility in multichannel applications.

*The number of channels that can be used simultaneously depends on local frequency plans.


  • Bodypack transmitter with rugged aluminium body
  • 30 MHz wide UHFband
  • Backlit display and jog switch for ease of use
  • Up to 50 mW RF output for maximum immunity tointerference and dropouts
  • Optional remote mute switch
  • Operates for up to 15 hours on AA size dry batteries,12 hours on optional BP 4000 battery pack with integrated Smart BatteryManagement System
  • Charging contacts for easy battery charging on optional charger


  • Carrier Frequency Range:
    500 to 530 MHz
    570 to 600 MHz
    650 to 680MHz
    Modulation: FM
  • RF Radiation: Max. 50 mW (ERP)
  • Audio Bandwidth: 35 to 20,000 Hz
  • THD: <0.3% typical
  • Signal/Noise Ratio: >120 dB(A) typical
  • Battery Life: 2 AA size dry batteries: 15 hours typ.;BP 4000 rechargeable battery pack: 12 hours typ.
  • Dimensions: 2.8" x 3.5" x 1"
  • Net Weight: 3.4 oz
  • Patent(s): Remaining battery life (Patent no. AT 408.280, GB 2.349.230, US6,344,730)

Consumer Alert

This particular wireless microphone device operates in portions of the 617-652 MHz or 663-698 MHz frequencies. Beginning in 2017, these frequencies are being transitioned by the Federal Communications Commission (FCC) to the 600 MHz service to meet increasing demand for wireless broadband services. Users of this device must cease operating on these frequencies no later than July 13, 2020. In addition, users of this device may be required to cease operations earlier than that date if their operations could cause harmful interference to a 600 MHz service licensee’s wireless operations on these frequencies. For more information, visit the FCC’s wireless microphone website at www.fcc.gov/wireless-microphones-guide or call the FCC at 1- 888-CALL-FCC (TTY: 1-888-TELL-FCC).
