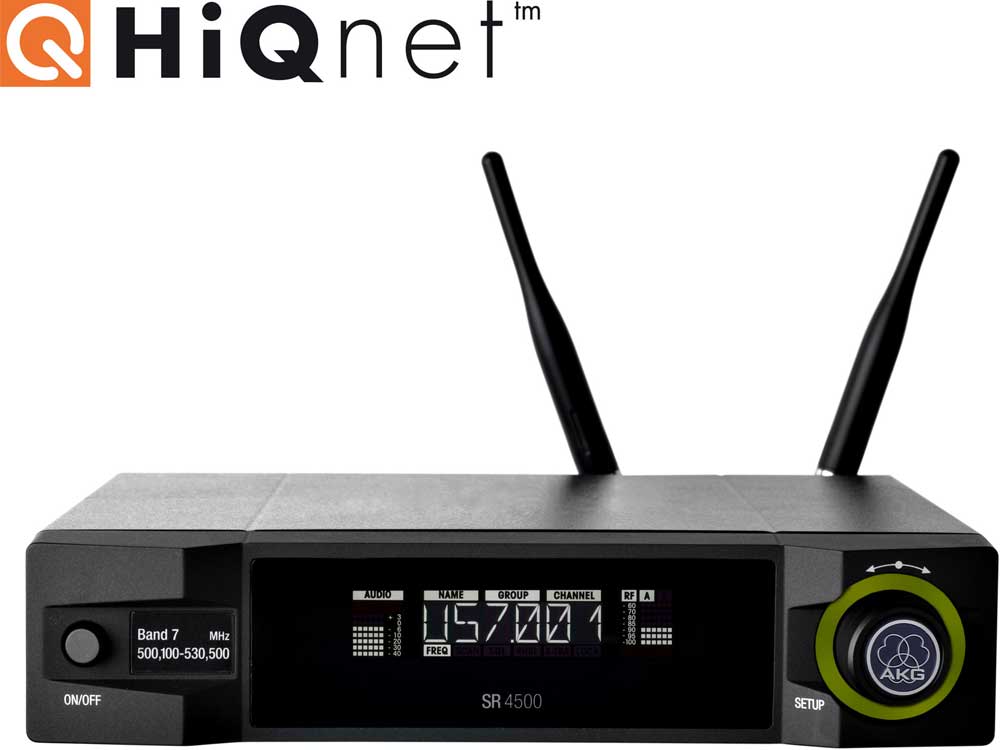

AKG SR4500
UHF True Diversity Receiver

OUR PART #:  SR4500

The SR 4500 true diversity receiver provides maximum ease of use and the widest range of functions in its class.
Learn More
Selected Model Price: $649.00
List Price: $819.00
Save up to 21%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping


We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price


AKG SR4500
Select a Model: (shipping times are approximate)

Similar Products

The SR 4500 true diversity receiver provides maximum ease of use and the widest range of functions in its class. Its accurate battery life readout is a previously unavailable, invaluable advantage in live sound applications. A complete line of accessories makes the SR 4500 your first choice for every application. The transmitter uses a pilot tone to transmit battery status data to the receiver that displays the remaining battery capacity. The pilot tone decoder also allows the detection and display of other important information including the current position of the transmitter MUTE switch.

Auto Setup and Environment Scan functions automatically analyze the local RF environment, find usable frequency groups, and set frequencies. The optional HUB 4000 Q integrates the SR 4500 into a HiQnet™ system. With the PC control software System Architect™ setting up and monitoring highly complex systems is incredibly easy. A logic output allows remote control of external devices, e.g., an automatic microphone mixer. ´

Naturally, the SR 4500 operates in an extremely wide UHF band (30 MHz) and each frequency preset provides up to 19 intermodulation-free channels*. The maximum number of selectable frequencies is 1200. Using several frequency bands allows you to operate as many as 70 channels simultaneously. A large, backlit color display and a jog wheel make the SR 4500 easy to use and a programmable LED ring indicates important system parameters at a glance.

Housed in a half-rack, all-metal case, the SR 4500 is the most compact, reliable, and powerful UHF receiver in its price bracket.

The SR 4500 is fully compatible to its predecessor SR 4000. It offers two additional frequency bands in the range of 500 to 530 and 570 to 600 MHz, which give you even more flexibility in multichannel applications.

The SR 4500 can be integrated into a HiQnet™ system with the optional HUB 4000 Q. With the PC control software System Architect™ the SR 4500 can be remote controlled and monitored from a PC. The setup and configuration of the frequency management of the entire wireless system is incredibly easy within System Architect™ with tools like RF Monitor, Device Manager, Environment Scan and Auto Setup.

*The actual number of channels that can be used simultaneously depends on local frequency plans.


  • True diversity receiver with all-metal case
  • Available in three UHF bands30 MHz wide each
  • Using several frequency bands allows up to 70 channelsto be operated simultaneously.
  • Transmitter battery status monitoring and tone codesquelch
  • Auto Setup, Environment Scan, and Rehearsal functionsfor quick and easy setup
  • Backlit, programmable color display and jog wheel withselectable warning signal for ease of use
  • Output for controlling external devices
  • Integrated data interface for controlling and monitoring from a PC viaSystem Architect™


  • Carrier Frequency Range:
    500 to 530 MHz
    570 to 600 MHz
    650 to 680MHz
    Modulation: FM
  • Audio Bandwidth: 35 to 20,000 Hz
  • THD: <0.3% typical
  • Signal/Noise Ratio: >120 dB(A) typical
  • Audio Outputs: Balanced 3-pin XLR; unbalanced TS 1/4"jack; output level adjustable to -30, 0, +6 dB
  • Dimensions: 7.8" x 1.7" x 7.4"
  • Net Weight: 2.2 lbs
  • Patent(s): Remaining playing time (Patent no. AT 408.280, GB 2.349.230, US6.344.730)
