Elation FLEX RGB+ WP Outdoor Rated RGB LED Tape, 10' Long

OUR PART #: FLEX-RGB+WP MFR #: FLEX RGB+ WP

Copied to clipboard

Elation FLEX LED Tape is a very thin and flexible LED circuit strip mounted inside a silicone water proof sleeve. ...Read more

Elation FLEX RGB+ WP Outdoor Rated RGB LED Tape, 10' Long Image 1
Elation FLEX RGB+ WP Outdoor Rated RGB LED Tape, 10' Long Image 2
Elation FLEX RGB+ WP Outdoor Rated RGB LED Tape, 10' Long
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

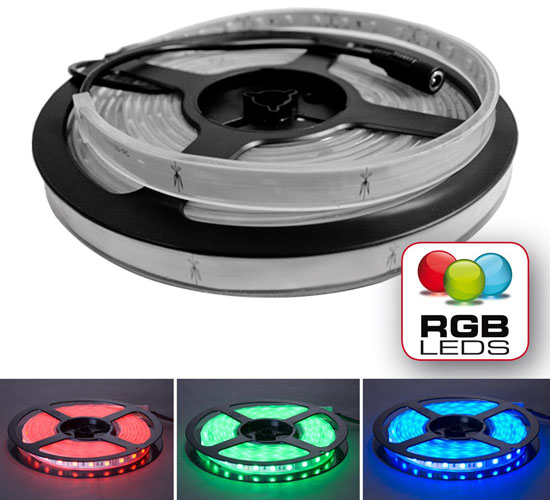

Elation FLEX LED Tape is a very thin and flexible LED circuit strip mounted inside a silicone water proof sleeve. It can be cut every 2" and put back together using simple soldering techniques and a silicone seal kit. High output, low heat and easy installation make this product well-suited for a variety of applications.

This model, the RGB version, has been prefabricated in a 10 ft spool with 60 x 2" circuit strips holding 3 SMD LEDs each for a total of 180 120° SMD LEDs. A 12 V power supply and control option (both sold separately) are required to make the tape work.

There are two control options available to operate FLEX RGB Tape - a wireless controller and a DMX driver. The infrared wireless controller system allows you to change colors, select 16 static colors, or run color fades plus 2 intensity settings. The DMX driver gives you 3 DMX channels and allows you to use the DMX controller of your choice, letting you create specific colors, 0-100% dimming and program intensity levels of your choice.

Features

  • 3 colors on one chip
  • 16.6 mm space between LEDs, dividable every 50 mm
  • Bright RGB colors
  • Easy to use connector system

Specifications

  • Voltage: 12 V
  • Total power consumption: 26W at full power for 10 ft roll
  • Beam Angle: 120°
  • Operating Temperature: -40°F to 176°F (-40°C to 80°C)
  • Avg. Rated Life: 30,000 hrs
  • LED Spacing: 0.65" (16.6 mm)
  • Dimensions (W x D): 0.45" x 0.005" (11.5 x 0.15 mm)
