Neutrik NC3FXX-EMC-B 3-pin XLRF Connector with Enhanced RF Shield, Black

OUR PART #: NC3FXX-EMC-B MFR #: NC3FXX-EMC-B

Copied to clipboard

Neutrik's 3-pole female EMC-XLR cable connector (part number: MC3FXX-EMC-B) is a specifically-designed version of the XX series that gives enhanced RF screening for critical applications in live performance and recording where there are particular problems with radio transmission or mobile phones. The design guarantees a continuous RF shield connection from the cable to the chassis connector housing via a circular capacitor around the cable shield. An EMI suppression ferrite bead between pin 1 and the cable screen provides a low-pass filter for improved RF rejection. ... ...Read more

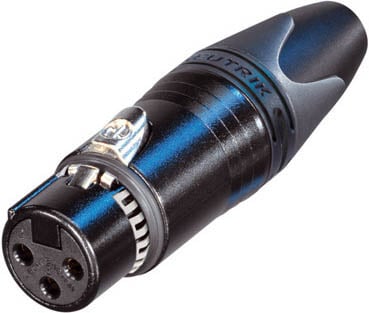

Neutrik NC3FXX-EMC-B 3-pin XLRF Connector With Enhanced RF Shield, Black Image 1
G8uFiiQvW-Y?rel=0
1 Video
Neutrik NC3FXX-EMC-B 3-pin XLRF Connector With Enhanced RF Shield, Black
Our Price: $14.10
List Price: $16.45
You save 14%!

SPECIAL FINANCING AVAILABLE

Synchrony Music & Sound Card
$1/mo* with 36 month financing. ‡
Limited Time. Learn How

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

Neutrik's 3-pole female EMC-XLR cable connector (part number: MC3FXX-EMC-B) is a specifically-designed version of the XX series that gives enhanced RF screening for critical applications in live performance and recording where there are particular problems with radio transmission or mobile phones. The design guarantees a continuous RF shield connection from the cable to the chassis connector housing via a circular capacitor around the cable shield. An EMI suppression ferrite bead between pin 1 and the cable screen provides a low-pass filter for improved RF rejection.

Features:

  • 3 pole male and female XLR cable connector with integrated capacitive shield to shell connection
  • Circular capacitor around the cable shield enables low-inductive shield connection to connector housing
  • Female connector with circumferential ground spring providing an accurate connection to the mating shell
  • Cable shield - Pin 1 connection includes EMI suppression bead to block high frequencies
  • Avoid ground loops as there is no LF-shield connection to ground
  • Rugged zinc diecast shell, long lasting and durable
  • Chuck type strain relief system for secure clamping of cables
  • Boot with rubber gland gives high protection against bending stresses
