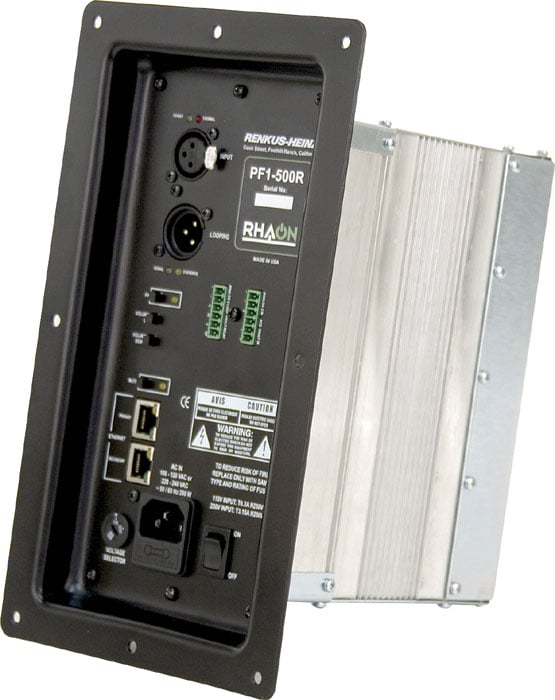

Renkus-Heinz PF1-500R
500W RMS @ 4 Ohms PF Series Amp Module with RHAON

OUR PART #:  PF1-500R

The Renkus-Heinz PF Series, Class D digital amplifiers light weight switching power supplies are over 70% efficient at full output.
Learn More
Our Price: $1,239.00
List Price: $1,650.00
You save 25%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping


We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price


Renkus-Heinz PF1-500R
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Renkus-Heinz PF Series, Class D digital amplifiers light weight switching power supplies are over 70% efficient at full output. Their high efficiency reducing AC power requirements and eliminating the need for a cooling fan.

The PF Series, Intelligent Digital Amplifiers, drive loudspeakers to unprecedented levels of accuracy and performance. The PF Amplifiers combine comprehensive driver protection, parametric equalization and light, cool Class D power amplfication into a single compact unit.

Whenever you are ready for Ethernet audio networking, your Renkus-Heinz loudspeakers are, too. RHAON empowers you with full control over digital audio distribution, speaker-specific DSP and control/monitoring – all using standard Ethernet hardware and cable.

The PF1-500R is identical to the PF1-500 except for the addition of the RHAON Network Interface.

Renkus-Heinz PF1-500R Specifications:

  • Power: 500 W RMS @ 4O, 500 W Burst
  • Frequency Response: +0.0, -.5 dB, 20 Hz to 20 kHz
  • THD Distortion: < 0.02% typical
  • Hum & Noise: <100 dB (A weighted)
  • Damping: >100
  • Input: 10K Ohm balanced differential
  • Sensitivity: 1.0 V for RPO
  • CMR: 74 dB
  • Controls: Gain (screwdriver adjustable)
  • Connectors: Input: Looping XLR; female in, male out (pin 1chassis, pin 2 +, pin 3 -)
  • Power:
    • Power: EC Power connector
    • Universal 90–260 VAC,50/60Hz.
    • 5A @ 120 V, 2.5A @ 240V
    • Idle current: 400 mA @ 120V;200 mA @240V
    • Max inrush current: 1 A
  • Inputs:
    • Cobranet; dual RJ45 connectors; accept
    • Cat e5 copper cable
    • AES/EBU; Phoenix connectors
    • Analog; Phoenix connectors
  • Digital Format: 16 or 24 bit PCM; 48 or 96 kHz samplerate; selectable Network Latency
  • Protection: Soft & Peak Limiting, Excursion Control & Thermal Regulation
