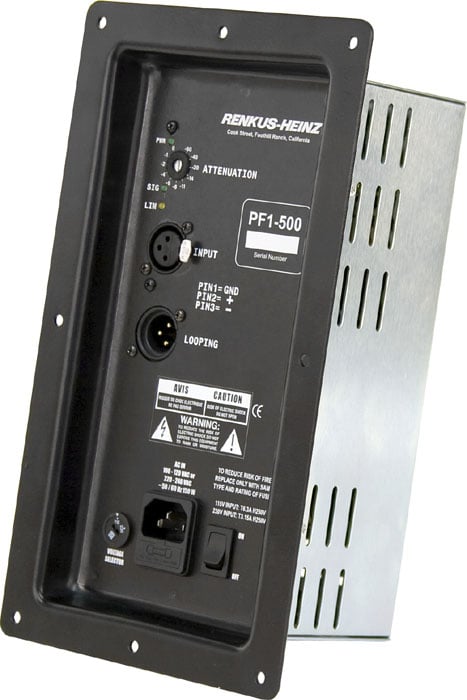

Renkus-Heinz PF1-500
500 W RMS @ 4 Ohms PF Series Amp Module

OUR PART #  PF1-500

Our Price: $719.00
List Price: $950.00
You save 24%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

PF Series, Class D digital amplifiers light weight switching power supplies are over 70% efficient at full output. Their high efficiency reducing AC power requirements and eliminating the need for a cooling fan.

The PF Series, Intelligent Digital Amplifiers, drive loudspeakers to unprecedented levels of accuracy and performance. The PF Amplifiers combine comprehensive driver protection, parametric equalization and light, cool Class D power amplfication into a single compact unit.

Whenever you are ready for Ethernet audio networking, your Renkus-Heinz loudspeakers are, too; just replace the connector plate or the PF series amplifier with a RHAON empowered amplifier equipped for connection to the Renkus-Heinz Audio Operations Network. RHAON empowers you with full control over digital audio distribution, speaker-specific DSP and control/monitoring – all using standard Ethernet hardware and cable.


  • Power:
    500 W RMS @ 4O, 500 W Burst
  • Frequency Response:
    +0.0, -.5 dB, 20 Hz to 20 kHz
  • THD Distortion:
    < 0.02% typical
  • Hum & Noise :
    <100 dB (A weighted)
  • Damping:
  • Input:
    10K Ohm balanced differential
  • Sensitivity:
    1.0 V for RPO
  • CMR:
    74 dB
  • Controls:
    Gain (screwdriver adjustable)
  • Connectors:
    Input: Looping XLR; female in, male out (pin 1 chassis, pin 2 +, pin 3 -)
  • Power:
    Power: EC Power connector
    Universal 90–260 VAC, 50/60Hz.
    5A @ 120 V, 2.5A @ 240V
    Idle current: 400 mA @ 120V;200 mA @ 240V
    Max inrush current: 1 A
