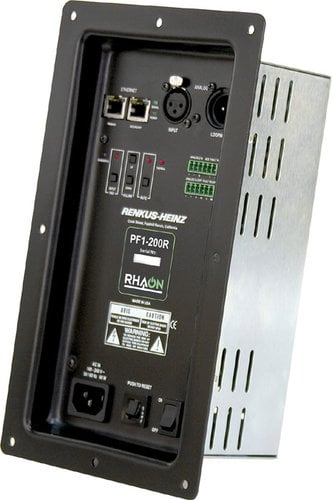

Renkus-Heinz PF1-200R 200W RMS @ 4 Ohms PF Series Amp Module with RHAON

The Renkus-Heinz PF Series, Class D digital amplifiers light weight switching power supplies are over 70% efficient at full output. Their high efficiency reducing AC power requirements and eliminating the need for a cooling fan.

The PF Series, Intelligent Digital Amplifiers, drive loudspeakers to unprecedented levels of accuracy and performance. The PF Amplifiers combine comprehensive driver protection, parametric equalization and light, cool Class D power amplfication into a single compact unit.

Whenever you are ready for Ethernet audio networking, your Renkus-Heinz loudspeakers are, too. RHAON empowers you with full control over digital audio distribution, speaker-specific DSP and control/monitoring – all using standard Ethernet hardware and cable.

The PF1-200R is identical to the PF1-200 except for the addition of the RHAON Network Interface.

Renkus-Heinz PF1-200R Specifications:

• Power: 200 W RMS @ 4O, 300 W Burst
• Frequency Response: +0.0, -.5 dB, 20 Hz to 20 kHz
• THD Distortion: < 0.02% typical
• Hum & Noise : < 100 dB (A weighted)
• Damping: >100
• Input: 10K Ohm balanced differential
• Sensitivity: 1.0 V for RPO
• CMR: 74 dB
• Controls: Gain (screwdriver adjustable)
• Connectors: Input: Looping XLR; female in, male out(pin 1 chassis,pin 2 +, pin 3 -)
• Power:
  • Power: EC Power connector
  • Universal 90–260 VAC, 50/60Hz.
  • 2.4A @ 120 V, 1.2A @ 240V
  • Idle current: 200 mA @ 120V;100 mA @ 240V
  • Max inrush current: 1 A
• Inputs:
  • Cobranet; dual RJ45 connectors; accept Cat e5 copper cable
  • AES/EBU; Phoenix connectors
  • Analog; Phoenix connectors
• Digital Format:
  • 16 or 24 bit PCM; 48 or 96 kHz sample rate; selectable Network Latency
• Protection: Soft & Peak Limiting, ExcursionControl & Thermal Regulation
