Renkus-Heinz CFX18S 900W 18" Passive Subwoofer

OUR PART #: CFX18S

Copied to clipboard

Sound that makes performances and audiences truly come alive doesn’t come easy. ...Read more

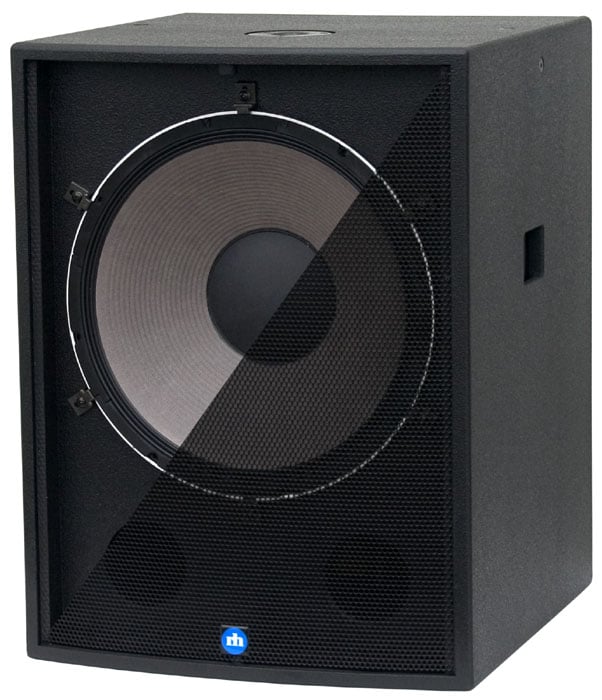

Renkus-Heinz CFX18S 900W 18" Passive Subwoofer Image 1
Renkus-Heinz CFX18S 900W 18" Passive Subwoofer
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

Sound that makes performances and audiences truly come alive doesn’t come easy. But CF & CFX Series loudspeakers put the power of unique Renkus-Heinz developments like Complex Conic Horns to work for you. Versatile enclosure designs, go-anywhere hardware and rugged construction help solve your sound reinforcement challenges easily and quickly. Advanced options like intelligent onboard amplification and RHAON — the Renkus-Heinz Audio Operations Network — help you build sophisticated sound systems that are easy to use.

Powerful 18" Subwoofers - Provide high-impact (128 dB peak SPL on the CFX18S) sub-bass performance.

CFX18S Non-Powered Subwoofer - Same high performance as the CF18S only non-powered.

High Power, High Performance Woofers - With 4" voice coils, rigid cast-alloy frames and long throw magnetic structures easily handle 900 Watts of program power.

Built-In Lo-Pass Filter - Eliminates the need for a separate electronic crossover.

RHAON Renkus-Heinz Audio Operations Network - Self-powered CF18S series subwoofers are available with RHAON for flexible digital signal distribution, loudspeaker management and control. Whenever you are ready for Ethernet audio networking, your CF/CFX loudspeakers are too; just replace the connector plate with a PF1-200R or PF1-500R RHAON empowered amplifier equipped for connection to the Renkus-Heinz Audio Operations Network. RHAON empowers you with CobraNet digital audio distribution, user configurable DSP for maximum control, remote systems management from any Windows computer, life safety functions and more – all using standard Ethernet hardware and cable.

If you need an outstanding high-power 18-inch subwoofer, order the CFX18S or CF18S-5. For nearfield applications, the CF18S-2 with a 200 Watt PF1-200 is a logical choice. If you need Ethernet-based audio operations networking, order the CF118S-2R or the CF18S-5R; both are RHAON empowered.

PF Series Intelligent Amplifiers - Passive, powered or networked: you can choose the CF/CFX system that suits your needs at any time. At the factory or in the field, the CFX passive connector plate can be easily replaced by a PF1-200 or PF1-500 Class D digital amplifier with loudspeaker specific processing. Their lightweight switching power supplies deliver 70% efficiency at full output, reducing AC requirements and eliminating the need for a cooling fan.

APPLICATIONS

Virtually any application where high-output, low frequency content is required.

Permanent Installations

  • High quality music/speech systems and surround systems for housesofworship, schools, performing art centers, night clubs, etc.

Portable Applications

  • Live music, DJ systems, houses of worship, schools, etc.
