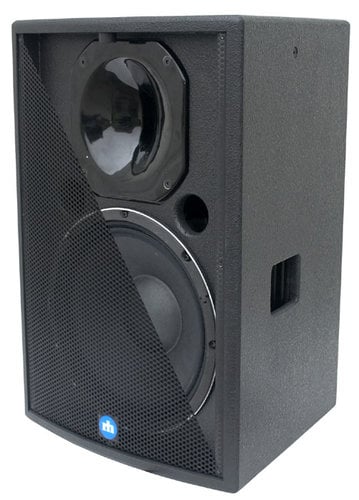

Renkus-Heinz CFX121 500W @ 4 Ohms Passive 2-Way 12" Speaker

Sound that makes performances and audiences truly come alive doesn’t come easy. But CF & CFX Series loudspeakers put the power of unique Renkus-Heinz developments like Complex Conic Horns to work for you. Versatile enclosure designs, go-anywhere hardware and rugged construction help solve your sound reinforcement challenges easily and quickly. Advanced options like intelligent onboard amplification and RHAON — the Renkus-Heinz Audio Operations Network — help you build sophisticated sound systems that are easy to use. Outstanding, full-range ± 3 dB, 70 Hz to 18 kHz performance in a compact, space-saving design.

All self-powered CF121 series cabinets are available with RHAON for flexible digital signal distribution, loudspeaker management and control. Whenever you are ready for Ethernet audio networking, your CF/CFX loudspeakers are too; just replace the connector plate with a PF1-200R or PF1-500R RHAON empowered amplifier equipped for connection to the Renkus-Heinz Audio Operations Network. RHAON empowers you with CobraNet digital audio distribution, user configurable DSP for maximum control, remote systems management from any Windows computer, life safety functions and more – all using standard Ethernet hardware and cable.

If you need an outstanding high-power 12-inch 2-way system, order the CFX121 or CF121-5. For full-range nearfield applications, the CF121-2 with a 200 Watt PF1-200 is a logical choice. If you need Ethernet-based audio operations networking, order the CF121-2R or the CF121-5R; both are RHAON empowered.

Provides constant beamwidth/directivity without the problems of conventional rectangular horns; can be rotated 90° within the cabinet for wide or deep listening spaces. Provides smooth, low distortion high frequency performance to 18 kHz and beyond. Easily handles 500 Watts of program power. Includes EQ and high frequency protection; in the CFX121 eliminates need for a separate electronic crossover and bi-amplification.

Passive, powered or networked: you can choose the CF/CFX system that suits your needs at any time. At the factory or in the field, the CFX passive connector plate can be easily replaced by a PF1-200 or PF1-500 Class D digital amplifier with loudspeaker specific processing. Their lightweight switching power supplies deliver 70% efficiency at full output, reducing AC requirements and eliminating the need for a cooling fan.

APPLICATIONS

Virtually any application where size is a critical issue and outstanding sonic performance is required.

Permanent Installations

• Ideal compact main PA for music and speech or as part of a high output distributed system in larger venues.
• Houses of worship, schools, performing art centers, night clubs, stadiums and arenas.

Portable Applications

• Ideal main PA for unobtrusive live music and speech reinforcement or as fill coverage in larger systems.
• Rental A/V, DJ systems, churches, schools, etc.
