Belden 9729-BY-THE-FOOT AES/EBU Wire, 24 AWG, 2 Pair, By The Foot

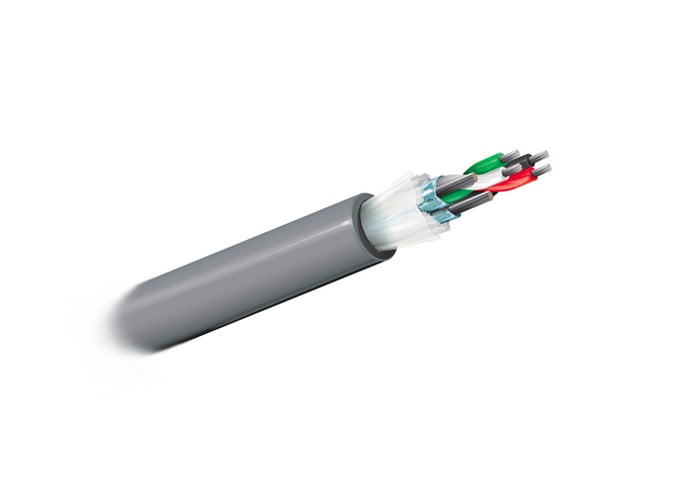

Belden's 9729 is 24 AWG stranded (7x32), tinned copper conductors, with Datalene® insulation, twisted pairs, individually Beldfoil® shielded (100% coverage), 24 AWG stranded tinned copper drain wire and PVC jacket.

Datalene insulation features include low dielectric constant and a dissipation factor for high-speed, low-distortion data handling. Physical properties include good crush resistance and light weight.

Note: this cable is sold by the foot.

Specifications

• Nominal OD - Conductor: 0.024"
• Nominal OD - Insulation: 0.061"
• Approvals: NEC, CEC (CM)
• UL Ratings: UL AWM Style 2493
• Voltage Rating: 300 V
• Temperature Rating: 60 °C
  • Non UL Temperature Rating: 80 °C
• Nominal DCR
  • Conductor: 24.0 Ω/1000ft
  • Shield: 15.0 Ω/1000ft
• Nominal Impedance: 100 Ω
• Nominal Velocity of Propagation: 76%
• Nominal Capacitance
  • Between Conductors: 12.5 pF/ft.
  • Between Conductor/Shield: 23.2 pF/ft.
• Note: additional information can be found within the "9729 Datasheet" located under the "Documentation" tab above.
