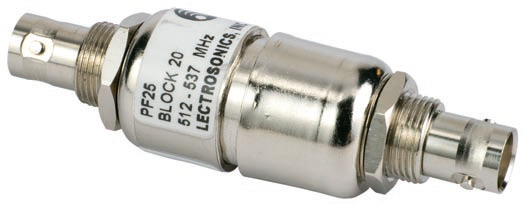

Lectrosonics PF25
Passive In-Line RF Filter (with 25MHz Passband)

OUR PART #:  PF25

Passive in-line RF filter with 25MHz passband.
Learn More
Selected Model Price: $109.71
List Price: $130.00
Save up to 16%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Lectrosonics PF25
Select a Model: (shipping times are approximate)
Qty:

Similar Products

Passive in-line RF filter with 25MHz passband.  Designed for use with VRMWB and VRField WB wide-band receiver systems in cases where the full bandwidth of the receiver is not needed.

The PF25 passive filter is inserted into a coaxial line between the antenna and a receiver or multicoupler to suppress RF signals and noise outside of the desired operating band. In essence, it provides the same function as front-end filters in a receiver, reducing interference and intermodulation. The filter will also pass DC "phantom" power from a Venue receiver or UMC16B multicoupler to operate a remote antenna amplifier.

The filter can be used with a single receiver or multicoupler to improve selectivity, or used in more complex signal distribution systems where the antenna/s feed two or more receiving systems in different frequency ranges.

NOTE: Contact your Full Compass Sales Representative to specify block when ordering.

Specifications:

  • Filter type: SAW (surface acoustic wave)
  • Bandwidth: Varies with frequency block
  • Standard frequency blocks:
    470: 470.100 - 495.600
    19: 486.400 - 511.900
    20: 512.000 - 537.500
    21: 537.600 - 563.100
    22: 563.200 - 588.700
    23: 588.800 - 614.300
    24: 614.400 - 639.900
    25: 640.000 - 665.500
    26: 665.600 - 691.100
    27: 691.200 - 716.700
    28: 716.800 - 742.300
    29: 742.400 - 767.900
    944: 944.100 - 951.900
  • Maximum RF level: +10 dBm
  • DC bias power capacity: 350 mA max.
  • Input impedance: 50 Ohm BNC
  • Output impedance: 50 Ohm BNC
  • Dimensions: 2.97" x 0.84" diameter (75 x 21 mm)
  • Weight: 2.7 ozs. (76 g)
