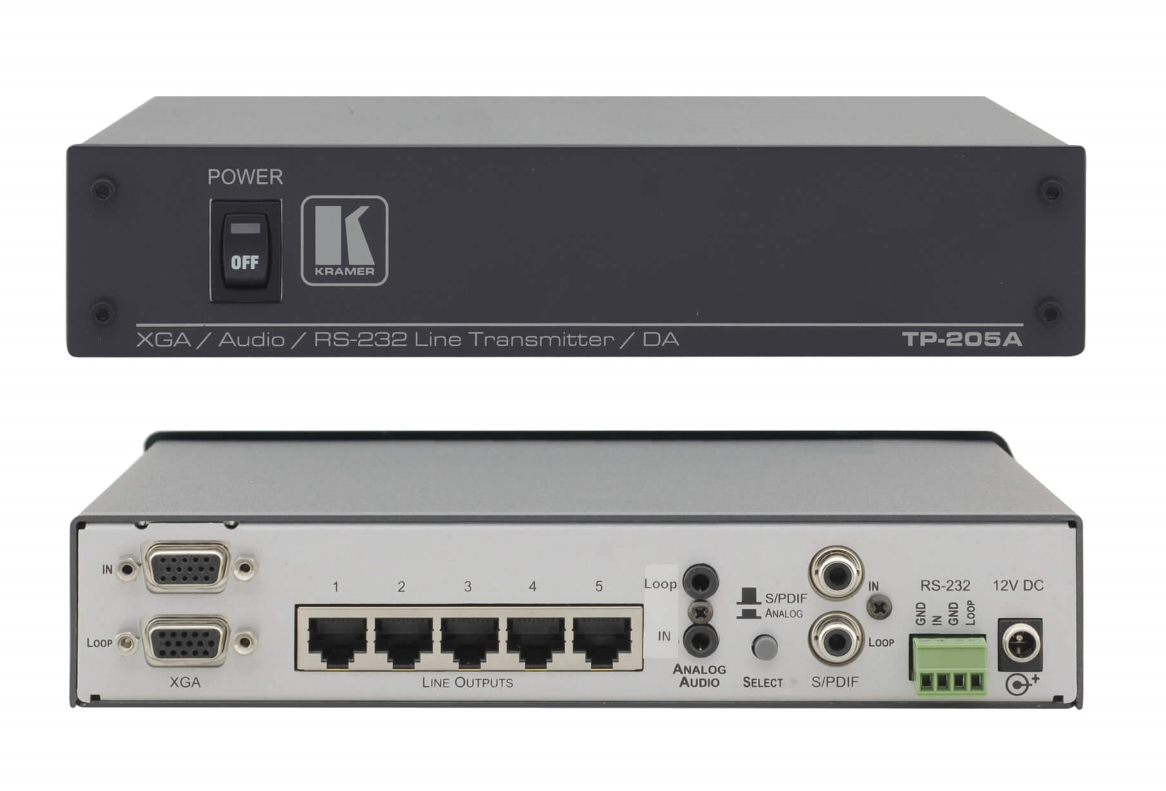

Kramer TP-205A
1:5 Computer Graphics Video, Audio & RS-232 Twisted Par Transmitter & Distribution Amplifier

OUR PART #:  TP-205A

Kramer's TP-205A is a high-performance distribution amplifier for computer graphics video signals with resolutions up to UXGA...
Learn More
Our Price: $828.00
List Price: $1,035.00
You save 20%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Kramer TP-205A
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Kramer's TP-205A is a high-performance distribution amplifier for computer graphics video signals with resolutions up to UXGA, RS-232 signals and stereo or S/PDIF audio signals.  This unit takes one set of inputs and outputs five twisted pair signals to compatible receivers.

Kramer TP-205A Features:

  • Resolution: Up to UXGA
  • Inputs: Computer graphics video (15-Pin HD), stereo audio (3.5mm), S/PDIF (RCA) & RS-232 (terminal block)
  • Looping Inputs: To cascade to another TP-205A
  • HDTV Compatible
  • Outputs: 5 RJ-45 connectors
  • Sync Polarity Settings: H & V switches for improved HDTV compatibility with the CAT 5 outputs
  • System Range: Up to 100 meters (300 ft.)
  • Requires UTP (unshielded twisted pair) such as CAT5
  • Power Connect™ System: Only the transmitter needs to be connected to a power source (within existing power supply limitations)
  • Two units can be rack mounted side-by-side in a 1U rack space with the optional RK-1 rack kit.

Kramer TP-205A Specifications:

  • Inputs:
    • Video: 1 VGA / UXGA on an HD15 connector
    • Audio: 1 audio ANALOG 3.5mm mini jack, 1audio S/PDIF RCA connector
  • Outputs: 1 RJ-45 OUT connector
  • Maximum Output Level:
    • Video: 1V
    • Audio: 2.3V
  • Bandwidth (-3dB)2: AUDIO: 20Hz–20kHz@0.5dB
  • S/N Ratio (Audio): >80dB
  • Total Audio Gain: Analog/analog: 0dB; Analog/SPDIF: –12dBFS
  • TND+N: Audio: <0.01%
  • Power Source: 12 VDC 60mA
  • Dimensions (WxDxH): 8.45" x 6.4" x 1.72" (21.46 x 16.25 x 4.36 cm)
  • Weight: 2.65 lbs. (1.2 kg) approx.
  • Accessories: Power supply
