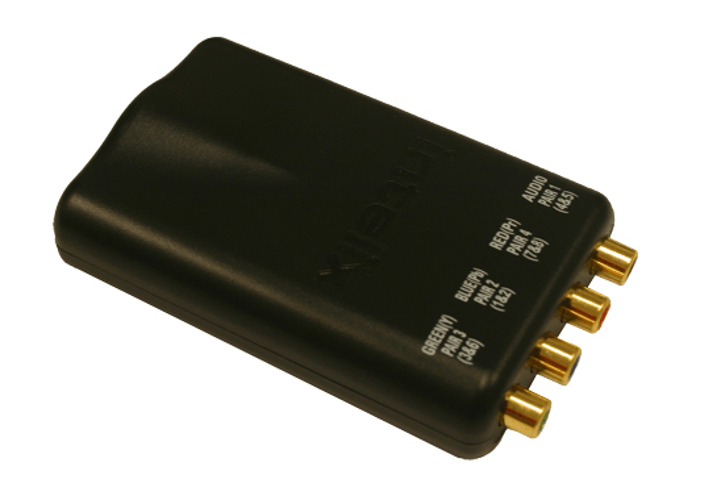

Intelix AVO-V3AD-F
HDTV Component Video/Digital Audio Balun

OUR PART #:  AVO-V3AD-F

The Intelix AVO-V3AD-F HDTV balun transmits one high-definition component video signal and one digital audio signal up to 1,000 feet over inexpensive structured cabling...
Learn More
Our Price: $92.53
List Price: $102.81
You save 10%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Intelix AVO-V3AD-F
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Intelix AVO-V3AD-F HDTV balun transmits one high-definition component video signal and one digital audio signal up to 1,000 feet over inexpensive structured cabling, such as Cat 5 or Cat 6.

Intelix AVO-V3AD-F Balun Features/Specifications:

  • Maximum Distance:
    • Digital audio only: 600 feet\
    • 480i/p video only:1,000 feet
    • 480i/p video and digital audio: 600 feet
    • 720p video only: 500 feet
    • 720p video and digital audio: 500 feet
    • 1080i/p video only: 500 feet
    • 1080i/p video and digital audio: 500 feet
  • Bandwidth:
    • Video: 60 MHz, 3 dB roll off
    • Audio: 25 MHz, 1 dB roll off
  • Power: No power required
  • Maximum Input: 1.1 Vp-p
  • Audio Insertion Loss: Less than 1 dB over the frequency range
  • Video Insertion Loss: 0.1 dB for 0.1 MHz.Gradually increasing to 2.5 dB over the frequency range.
  • Audio Return Loss: Greater than 15 dB over the frequency range
  • Video Return Loss: Greater than 15 dB over the frequency range
  • Audio Common Mode Rejection: 150 dB at 0.1 MHz.Gradually increasing to -30 dB at 25 MHz.
  • Video Common Mode Rejection: -55 dB at 0.1 MHz.Gradually increasing to -20 dB at 60 MHz.
  • Cable: Cat 3, Cat 5, Cat 5e, Cat 6, and Cat 7 compatible
  • Connectors:
    • Input: four (4) gold-plated female RCA
    • Output: one (1) shielded RJ45
  • Enclosure: Fire retardant plastic
  • Dimensions: 4.3" x 2.5" x 1.0"
  • Shipping Weight: 3 lbs.
  • Pin Out:
    • Red: 7 & 8, pair 4
    • Blue: 1 & 2, pair 2
    • Green: 3& 6, pair 3
    • DigitalAudio: 4 & 5, pair 1
  • Temperature:
    • Operating: 32° to 131°F
    • Storage: -4° to 185°F
    • Humidity: up to 95%
  • Warranty: 2 years
