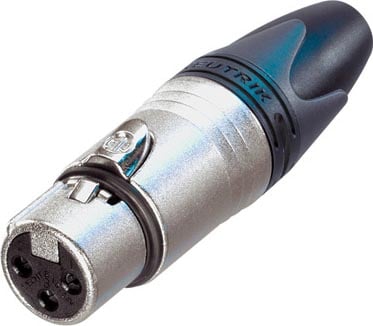

Neutrik NC3FXX-HA
3-Pin XLR-F Cable Connector

OUR PART #:  NC3FXX-HA

3-pole female cable connector with Nickel housing, silver contacts and crimp termination.
Learn More
Our Price: $2.92
List Price: $4.06
Save up to 40% when you order by quantity!
  • Buy 25: $2.64 each.
  • Buy 50: $2.55 each.
  • Buy 100: $2.45 each.
Write the first review.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Neutrik NC3FXX-HA
Qty:
Similar Products

3-pole female cable connector with Nickel housing, silver contacts and crimp termination.  Several new features make it more reliable, easier to assemble and improves contact integrity, as well cable strain relief.

Features:

  • Unique cage design of female contact for low contact resistance and high integrity
  • Crimp termination with standard B-crimp tool (B-crimp acc. IEC 60352-2)
  • Gastight and Solderless connection (RoHS compliant)
  • Female connector with improved solid metal latch which is larger and easier to handle
  • Additional ground spring contacts for better shell ground continuity
  • Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
  • Boot with polyurethane gland gives high protection to cable bending stresses
  • Colored rings and boots available for coding or identification
  • Sleek and ergonomic design

Specifications:

  • Connector Type: XLR
  • Gender: female
  • Capacitance between contacts: </= 4 pF
  • Contact resistance:  </= 3 mOhm
  • Dielectric strength: 1.5 kVdc
  • Insulation resistance: > 2 GOhm (initial)
  • Insulation resistance: > 1 GOhm (after damp heat test)
  • Rated current per contact: 1 A
  • Rated voltage: 50 V
  • Cable O.D.: 3.5 - 8.0 mm
  • Insertion force: </= 20 N
  • Withdrawal force: </= 20 N
  • Lifetime: > 1000 mating cycles
  • Wire size" 0.22 - 0.34 mm²
  • Wire size: 24-22 AWG
  • Wiring: Solder contacts
  • Locking device: Latch lock
  • Boot: Polyuretan
  • Bushing: Polyamide (PA 6 15% GR)
  • Contact plating: 2 µm Ag
  • Contacts: Bronze (CuSn8)
  • Insert: Polyamide (PA 6.6 30 % GR)
  • Locking element: Zinc diecast (ZnAl4Cu1) / Ck 67 (spring)
  • Shell: Zinc diecast (ZnAl4Cu1)
  • Shell plating: Nickel
  • Strain relief: Polyacetal (POM)
  • Flammability: UL 94 HB
  • Standard compliance: IEC 61076-2-103
  • Protection class: IP 40
  • Solderability: Complies with IEC 68-2-20
  • Temperature range: -30 °C to +80 °C
