Gefen Inc EXT-DVI-142DL
1:2 DVI DL Splitter

OUR PART #:  EXT-DVI-142DL

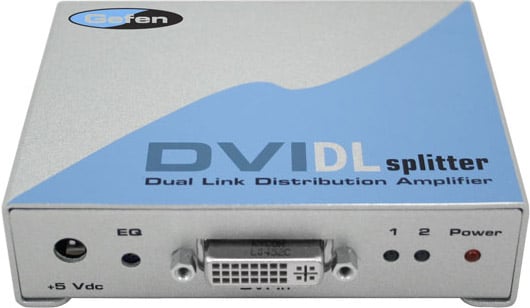

Gefen's EXT-DVI-142DL Splitter allows computers with a Dual Link DVI output to be connected to two or more Dual Link DVI displays at the same time.
Learn More
Our Price: $349.00

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Gefen Inc EXT-DVI-142DL
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Gefen's EXT-DVI-142DL Splitter allows computers with a Dual Link DVI output to be connected to two or more Dual Link DVI displays at the same time.  It is a flexible distribution hub that can accommodate multiple displays when two or more DVI DL Splitters are connected together to create a greater distribution.

The DVI DL Splitter is connected with a Dual Link DVI cable from the Dual Link DVI source to the DVI DL Splitter input. There are two Dual Link DVI outputs.  DVI output 1 is the primary connection and is used for the main display.  DVI output 2 follows the main display.

Features:

  • Splits a dual link DVI signal to two or more dual link DVI displays
  • Allows simultaneous display
  • Supports resolutions up to 1080p, 2K, and 3840 x 2400
  • Supports HDCP passthrough for output one
  • Supports DDWG standard for DVI compliant monitors

Specifications:

  • Video Amplifier Bandwidth: 2 x 165 MHz
  • Input Video Signal: 1.2 volts p-p
  • Input DDC Signal: 5 volts p-p (TTL)
  • Dual Link Range: 3840 x 2400
  • DVI Input/Output Connector: DVI-I (29 pin) female (digital only)
  • Power Supply: 5V DC
  • Power Consumption: 20 watts (max)
  • Dimensions: 5" W x 1" H x 4" D
  • Shipping Weight: 2 lbs.

NOTE: A connected display that cannot show the same video resolution(s) as the Primary Display connected to Output #1 may fail to show a picture.  Secondary displays follow the Primary by sharing the resolution and capability information (EDID) obtained from the Primary Display.
