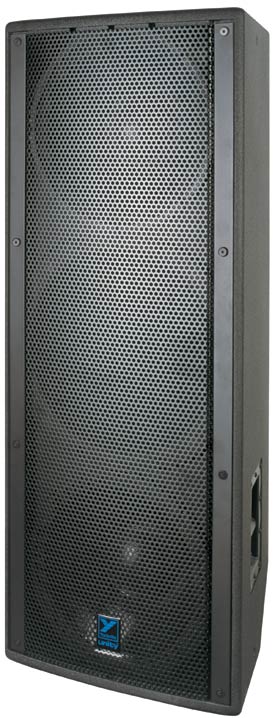

Yorkville U215
Speaker 1600W, 2x15, 3x5, 1"

OUR PART #  U215

Our Price: $1,549.00
List Price: $2,149.00
You save 28%! (Low Price Guarantee)
In Stock

Engineered for the serious pro audio user, the U215 is among the most advanced, most versatile and most efficient high-powered portable P.A. boxes available. The U215 is a radical loudspeaker cabinet design utilizing the patented Unity™ Summation Aperture Horn Technology invented by loudspeaker designer Tom Danley. The U215 provides remarkably even high/mid frequency distribution from its 60º x 60º horn assembly. The combination of the conical, constant directivity horn, dual 15-inch Neodymium-magnet woofers, and trapezoidal cabinet design has yielded an extremely versatile speaker.

The U215’s Unity™ horn combines a single 1-inch-throat (1.75" diaphragm) compression driver with three 5-inch ceramic magnet midrange drivers firing through time-aligned slots in the horn-wall. This seamlessly blends the mid and high frequencies while providing exceptional power capacity and clarity from 300Hz to 20kHz. A pair of advanced, high-efficiency, 800-Watt fifteens with ultra lightweight Neodymium magnets provide clean, powerful, extended lows to complete the package.

The U215 comes with a high-definition passive crossover featuring Yorkville's exclusive PTC™ non-interruptive horn protection. However it can be easily bi-amplified thanks to a switch on the rear jackplate, and with the optional UP215 Unity™ processor, designed specifically to optimize the sonic characteristics of the U215. The UP215 has been developed to ensure trouble free, plug-and-play operation whether the U215 is being run in passive or active bi-amped mode. It further offers a subwoofer output.

The ultra efficient U215’s trapezoidal enclosure provides a compact footprint that easily finds its home as a FOH speaker when deployed vertically on stage or on scaffold staging, either singly or in tight-packed arrays. Alternately, with its built-in flypoints, the U215 can be flown vertically or horizontally in touring or fixed systems. Other possible applications include side fill, front or down fill or virtually any situation where a professional quality sound reinforcement enclosure is required. In fact, the U215’s unparalleled sonic clarity and smooth frequency response also make it ideal for music playback. With pre-recorded music the U215 has the hi-fidelity to put it on par with some of the best studio reference monitors. But unlike traditional studio monitors, the U215 is capable if putting out very high sound pressure levels without audible distortion

The MTM (Mid-Top-Mid) cabinet design was chosen as the perfect vessel for the U215 drivers. An MTM design is ideal as it makes the most efficient use out of the Unity™ conical horn. This allows for better imaging and balanced summation between horn and subwoofers. The trapezoidal footprint is identical to the U15 allowing them to be mated together in a variety of ways where an unconventional cabinet array is required. It accomplishes this while still maintaining the ideal array angle to best couple multiple cabinets. The lightweight neodymium drivers help to keep the U215 total weight under 100lbs, virtually unheard-of for a 1600 watt 2x15" cabinet. Compare that to the 1500 watt E2152 at 167lbs and it is easily the lightest in its class.

Yorkville employed extensive research and development using the latest in Acoustical Measurement and Modeling software to ensure that all of the Unity™ Series cabinets function equally on their own or in tight pack cluster arrays. Flying is possible with the addition of an optional ATM™ Flyware bumper system, allowing tight-pack horizontal arrays of up to 3 cabinets at the optimum splay to maximize the Unity™ horn's dispersion pattern while minimizing phase-induced lobing.


  • Unique 60º x 60º Unity™ horn assembly combines mid and high frequency drivers on conical horn.
  • All four component drivers mounted in a Unity™ horn are mechanically time-aligned to measure and act like a single point source.
  • No self-interference between individual loudspeaker components.
  • Two 15-inch high power lightweight (10lbs/4.5kgs) Neodymium woofers with three-inch voicecoil.
  • Biamp mode switch
  • Ten rigging points allow for all possible mounting and flying configurations.
  • 15mm 11-ply birch cabinet construction.
  • Two-year unconditional warranty
  • Black Ozite (Carpet) Finish
