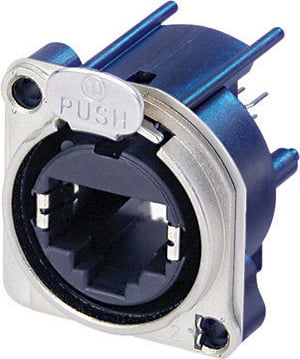

Neutrik NE8FBV
Ethercon® B Series RJ45 Connector (Vertical PCB Mount)

OUR PART #:  NE8FBV

Neutrik's EtherCon® Series is a lockable RJ45 connector system, optimized for pro audio, video and lightning network applications.
Learn More
Sale Price: $3.73
List Price: $6.13
Save up to 41% when you order by quantity!
  • Buy 100: $3.60 each.
Write the first review.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Neutrik NE8FBV
Qty:
Similar Products

Neutrik's EtherCon® Series is a lockable RJ45 connector system, optimized for pro audio, video and lightning network applications.  The chassis connectors are shaped to fit into standardized panels out of the entertainment industry.  Various wiring applications and color coding are available.  The B-Series offers a space saving design and a rugged metal front plate.

Neutrik NE8FBV Features:

  • Vertical PCB mount RJ45 receptacle
  • Accommodates rugged EtherCon® NE8MC or any standard RJ45 plug
  • Complies with Class D according to TIA / EIA 568B andISO / IEC 11801 standard
  • Ground panel connection
  • B-Series cutout with latch lock
  • Max. panel thickness: 3 mm

Neutrik NE8FBV Specifications:

  • Connector Type: RJ45
  • Gender: female
  • Contact resistance:  </= 10 mOhm
  • Dielectric strength: 1 kVdc
  • Frequency Range: 1-100 mHz
  • Insulation resistance: > 0.5 GOhm (initial)
  • Rated current per contact: 1.5 A
  • Rated voltage: 50 V
  • Transformer Performance: Class D
  • Standard Compliance: TIA/EIA 586B, IEC11801
  • Insertion force: </= 20 N
  • Withdrawal force: </= 20 N
  • Lifetime: > 1000 mating cycles
  • Wiring: Vertical PCB Mount
  • Locking device: latch lock
  • Mounting direction: rear
  • Chassis shape: B
  • Contact plating: 0.2 µm Au over Ni plating
  • Contacts: Bronze (CuSn8)
  • Insert: BTP 15% GR
  • Shell: Zinc diecast (ZnAl4Cu1)
  • Shell plating: Nickel
  • Solderability: Complies with IEC 68-2-20
  • Temperature range: -30 °C to +80 °C
