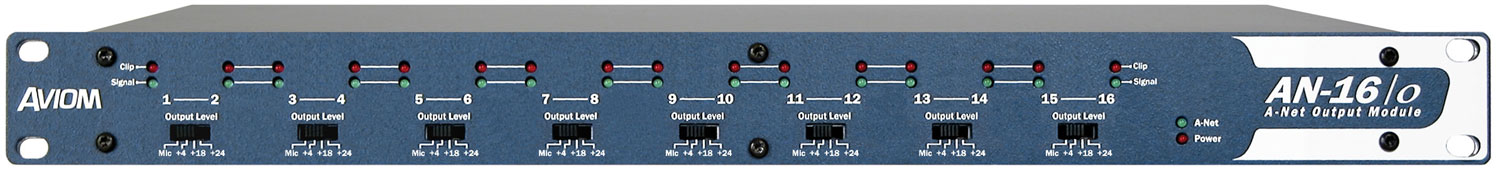

Aviom AN-16/o v.4 16-Channel Line Level Output Module for Aviom Pro16

The Aviom AN-16/o v.4 Output Module is a 1U rack-mount 16-channel digital-to-analog converter for Pro16® digital snake and audio distribution systems. Digital audio transmitted to the AN-16/o v.4 via Aviom's A-Net® Pro16 digital audio transmission protocol is converted to analog using 24-bit, 48kHz converters.

Sixteen balanced outputs are provided on the rear panel via DB25 multipin connectors. The analog outputs can be set (per channel pair) to +24dBu, +18dBu, +4dBu, or mic level.

In personal mixing systems using the A360 Personal Mixer with the D800 or D800-Dante A-Net Distributors, the AN-16/o v.4 simplifies connections to wireless IEM systems. Each A360 Personal Mixer sends its stereo mix output back into the network which appears as a pair of channels on the AN-16/o v.4. Each AN-16/o v.4 supports up to eight A360s. Simply patch the analog outputs on the AN-16/o v.4 into the IEM transmitter's inputs. No analog cables are required at the A360 on stage.

Use the AN-16/o v.4 anywhere analog outputs are required: on stage or FOH in a digital snake, in the studio, for a recording split, or in even the most complex audio networks. Adding a digital split to a Pro16 system is as simple as connecting an additional AN-16/o v.4 Output Module.

The AN-16/o v.4 can be connected to a Pro64 digital snake or audio network by adding the ASI A-Net Systems Interface.

Aviom AN-16/o v.4 Specifications:

• Audio Outputs: 16 channels, balanced
• Outputs: DB25 multipin connectors (2); Tascam® analog audio pinout impedance balanced output for mic, +4dBu, and +18dBu; differential output for +24dBu
• D/A Conversion: 48 kHz sample rate, 24 bit
• Frequency Response: 4 Hz - 22 kHz
• A-Net Input/Output: one EtherCon Category 5 (RJ45 connector)
• A-Net Expansion: one EtherCon Category 5 (RJ45 connector)
• Output Level Settings: Four-position switch, per channel pair; +24dBu, +18dBu, +4dBu, and Mic
• Channel LED Indicators: Signal Present and Clip, per channel
• Metering: LEDs; green: Signal Present; red: Clip; per channel
• Maximum Output Level: +24 dBu
• Output Impedance: 226 Ohms (+18dBu, +24dBu); 100 Ohms (+4dBu and mic)
• Freq. Response: 4 Hz - 22 kHz +0.2dB/-3dB
• THD +N: < 0.004%
• Crosstalk: -90 dB
• Bit Error Rate (BER): 10 (-12)
• Signal to Noise (unweighted): 92 dB typical, A/D to D/A; Measured from AN-16/i to AN-16/o v.4 Output Module
• Digital Connections: A-Net In: 1; A-Net Out: 1; A-Net Expansion: 1; Neutrik EtherCon connectors
• A-Net Pro16: A-Net Expansion combines two A-Net streams (32 channels of audio) onto one Cat-5e cable; uses unshielded Cat-5e UTP (or better) cable
• Latency: < 0.620 msec (measured from analog input to analog output)
• Power Supply:
  • Type: External, DC, universal switching type
  • Input Voltage: 100-240 volts, 50/60Hz, 30VA
  • Output Voltage: 24 VDC, 0.5 amp
  • Plug Size: 2 mm
• Power: 24 VDC, 500mA
• Dimensions: 19" (482.6 mm) wide x 5.75" (146 mm) deep; 1U high
• Weight: 6.8 lbs. (3.08 kg)
• Options: SB4 System Bridge; used to combine up to four A-Net streamsfor transmission over one Cat-5e cable
