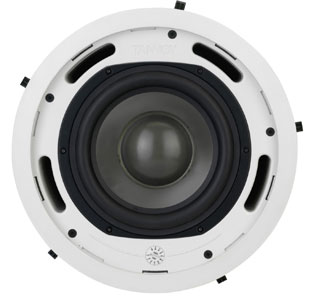

Tannoy CMS801-SUB-PI
200W 8" Pre-Install Ceiling Subwoofer without Transformer

OUR PART #:  CMS801-SUB-PI

Call for info!

Similar Products

The Tannoy CMS801-SUB-PI ceiling subwoofer is a compact unit that is specifically designed to complement the full range CMS ceiling monitor systems; delivering low frequency extension into applications that require a combination of premium sonic quality and output level for music and speech reinforcement. The 200mm (8.00") driver, with long throw multi fibre paper pulp cone, and a 2nd order 160Hz passive crossover are mounted in a vented, injection molded, paintable front baffle manufactured from UV/weather resistant UL94V-0 ABS material. Spring loaded self-aligning clamps make for quick and easy installation, and the unit is supplied with two tile support rails and one C-ring included in the package.

NOTE: This speaker REQUIRES the 7600 1788 transformer for use. This item is SOLD SEPARATELY and can be found under the "Accessories" tab.

Tannoy CMS801-SUB-PI Specifications:

  • Frequency Response (-3dB): 58Hz-160Hz
  • Frequency Range (-10dB): 42Hz-300Hz
  • System Sensitivity (1W at 1m)2: 92dB(1W = 2.45V for 6 Ohms)
  • Rated Maximum SPL: 112dB (average)
  • Power Handling Average: 100W
  • Recommended Amplifier Power: 200W @ 6 Ohms
  • Nominal Impedence: 6 Ohms
  • Transformer Taps (via front rotary switch): 70V: 60W/30W/15W/7.5W/Off& Low Impedence - 100V: 60W/30W/15W/Off & Low Impedence
  • Crossover: Integral 2nd order passive, 160 Hz
