Telex FMR-500C-A
A Band Wireless Cardioid Microphone System

OUR PART #  FMR500C-A-BAND

Our Price: $840.00
(Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

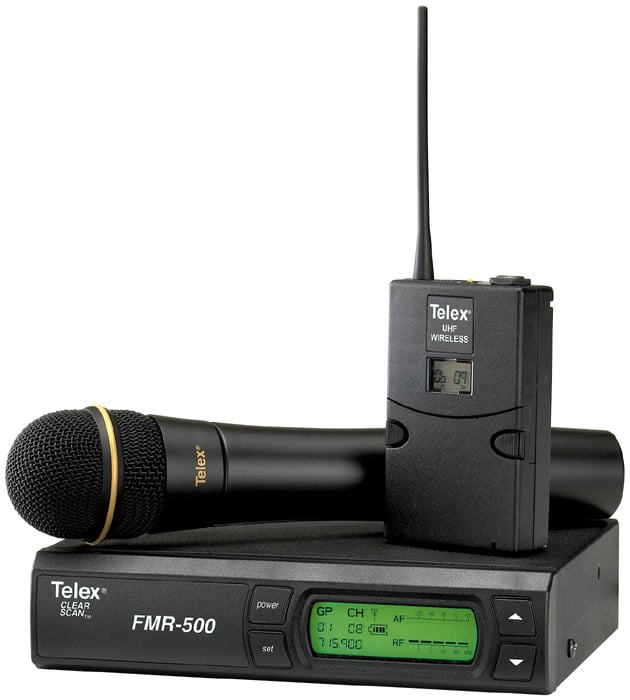

Telex's FMR-500C cardioid wireless microphone system offers A Band.

The FMR-500 series wireless microphone systems provide professional UHF flexibility and quality while remaining affordable. The FMR-500 systems deliver a professional feature set that includes UHF operation, 1,112 selectable frequencies and Clear Scan automatic channels selection. The FMR-500 system is available as a handheld, belt-pack or combination system, this system includes the FMR-500 receiver and WT-500 Belt-Pack with RE92TX lavalier microphone.

The FMR-500 Receiver is a half-rack mount unit that features diversity reception, resulting in minimal RF drop-out and interference. The FMR-500 features balanced XLR and 1/4" phone outputs and the back-lit LCD display provides, transmitter battery status, channel and frequency, diversity status, radio frequency and audio level. The Clear Scan auto channel selection allows quick setup, transmitter matching, and new channel selection if RF conditions change.

The WT-500 Belt-pack is light weight and operates on a single 9 volt battery. The transmitter features a TA4-male connection that is capable of accepting microphone or line level signal. The WT-500 also features an LCD display for monitoring status on all system parameters. Overall the FMR-500 series is more than suitable for fixed sound reinforcement in schools, clubs, theaters, rental houses and more.

Features:

  • RE92TX Lavalier Microphone:The WT-500 belt-pack includes the RE92TXcardioid, low profile lavalier microphone.
  • Frequency Agile UHF:The receiver and transmitter both operate over UHFfrequencies. The system is frequency agile providing over 1,112 possible, userprogrammable frequencies in 25kHz steps.
  • Diversity Reception:The FMR-500 receiver features dual internalreceivers, set to the same frequency. Enhanced DSP allow both receivers tocompete for the strongest reception without interference, noise or drop-out.
  • Advanced ClearScan:Advanced ClearScan technology allows quick, easyfrequency setup. Channels are scanned and the clearest channels within theclearest preset groups are automatically selected.

Specifications:

System:

  • Type of System: Frequency Agile UHF Lavalier
  • RF Carrier Frequency Range: Band G
  • Approx. Working Range: A band
  • Overall Frequency Response: 50Hz - 15kHz +/- 2dB
  • Signal-to-Noise Ratio: > 100dB A Weighted
  • Channels: 1,112 in 25kHz steps
  • Simultaneous Systems: 10

Receiver:

  • Type of Receiver: FMR-500 UHF Diversity
  • Type of Outputs: Balanced 3-pin XLR; Balanced 1/4" Phone
  • Headphone Monitoring: No
  • Power Requirements: 12V AC/DC 300mA
  • Battery Type/Approx. Life: AC Power Only
  • Display: Backlit LCD - Group/Channel, Frequency, Transmitter Battery,Diversity Status, RF and Audio Level Meters
  • Mounting Options: Includes single and dual rack mount hardware with frontmount antenna cables
  • Antenna Type: Fixed Length Dual BNC Diversity UHF
  • Dimensions: 1.72" H x 7.5" W x 5.9" D (43.69 x 190.50 x 150mm)

Transmitter:

  • Type of Transmitter: WT-500 UHF Belt-Pack
  • Type of Input Connector: TA4 (mini 4-pin)
  • Type of Microphone: RE92TX Lavalier
  • Polar Pattern: Cardioid
  • Interchangeable Mic Heads: Compatible with Telex / Electro Voicemicrophones with TA4 connection
  • Battery Type/Approx. Life: 9V Alkaline, Approx. 8 Hours (typical)
  • Mute Switch: Single Button On/Off Switch
  • Antenna Type: Flexible 1/4 wave
  • Display: LCD Display
  • Dimensions: 3.8" H x 2.38" W x 0.92" D (96.5 x 60.5 x 23.4mm)

Telex FMR-500C-A
A Band Wireless Cardioid Microphone System

OUR PART #  FMR500C-A-BAND

Product Information:

Telex's FMR-500C cardioid wireless microphone system offers A Band.

The FMR-500 series wireless microphone systems provide professional UHF flexibility and quality while remaining affordable. The FMR-500 systems deliver a professional feature set that includes UHF operation, 1,112 selectable frequencies and Clear Scan automatic channels selection. The FMR-500 system is available as a handheld, belt-pack or combination system, this system includes the FMR-500 receiver and WT-500 Belt-Pack with RE92TX lavalier microphone.

The FMR-500 Receiver is a half-rack mount unit that features diversity reception, resulting in minimal RF drop-out and interference. The FMR-500 features balanced XLR and 1/4" phone outputs and the back-lit LCD display provides, transmitter battery status, channel and frequency, diversity status, radio frequency and audio level. The Clear Scan auto channel selection allows quick setup, transmitter matching, and new channel selection if RF conditions change.

The WT-500 Belt-pack is light weight and operates on a single 9 volt battery. The transmitter features a TA4-male connection that is capable of accepting microphone or line level signal. The WT-500 also features an LCD display for monitoring status on all system parameters. Overall the FMR-500 series is more than suitable for fixed sound reinforcement in schools, clubs, theaters, rental houses and more.

Features:

  • RE92TX Lavalier Microphone:The WT-500 belt-pack includes the RE92TXcardioid, low profile lavalier microphone.
  • Frequency Agile UHF:The receiver and transmitter both operate over UHFfrequencies. The system is frequency agile providing over 1,112 possible, userprogrammable frequencies in 25kHz steps.
  • Diversity Reception:The FMR-500 receiver features dual internalreceivers, set to the same frequency. Enhanced DSP allow both receivers tocompete for the strongest reception without interference, noise or drop-out.
  • Advanced ClearScan:Advanced ClearScan technology allows quick, easyfrequency setup. Channels are scanned and the clearest channels within theclearest preset groups are automatically selected.

Specifications:

System:

  • Type of System: Frequency Agile UHF Lavalier
  • RF Carrier Frequency Range: Band G
  • Approx. Working Range: A band
  • Overall Frequency Response: 50Hz - 15kHz +/- 2dB
  • Signal-to-Noise Ratio: > 100dB A Weighted
  • Channels: 1,112 in 25kHz steps
  • Simultaneous Systems: 10

Receiver:

  • Type of Receiver: FMR-500 UHF Diversity
  • Type of Outputs: Balanced 3-pin XLR; Balanced 1/4" Phone
  • Headphone Monitoring: No
  • Power Requirements: 12V AC/DC 300mA
  • Battery Type/Approx. Life: AC Power Only
  • Display: Backlit LCD - Group/Channel, Frequency, Transmitter Battery,Diversity Status, RF and Audio Level Meters
  • Mounting Options: Includes single and dual rack mount hardware with frontmount antenna cables
  • Antenna Type: Fixed Length Dual BNC Diversity UHF
  • Dimensions: 1.72" H x 7.5" W x 5.9" D (43.69 x 190.50 x 150mm)

Transmitter:

  • Type of Transmitter: WT-500 UHF Belt-Pack
  • Type of Input Connector: TA4 (mini 4-pin)
  • Type of Microphone: RE92TX Lavalier
  • Polar Pattern: Cardioid
  • Interchangeable Mic Heads: Compatible with Telex / Electro Voicemicrophones with TA4 connection
  • Battery Type/Approx. Life: 9V Alkaline, Approx. 8 Hours (typical)
  • Mute Switch: Single Button On/Off Switch
  • Antenna Type: Flexible 1/4 wave
  • Display: LCD Display
  • Dimensions: 3.8" H x 2.38" W x 0.92" D (96.5 x 60.5 x 23.4mm)
