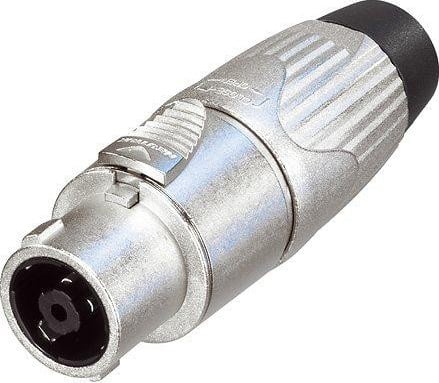

Neutrik NLT8FX
STX Series 8-Pin Female Speakon Cable Connector (Nickel Housing, Chuck Type Strain Relief)

OUR PART #:  NLT8FX

Neutrik's STX Series is the next generation of 8 pole Speakon connectors especially designed for heavy duty amplifier-loudspeaker applications like professional tour sound.
Learn More
Sale Price: $18.40
List Price: $33.76
Save up to 47% when you order by quantity!
  • Buy 100: $17.81 each.
Write the first review.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Neutrik NLT8FX
Qty:
Similar Products

Neutrik's STX Series is the next generation of 8 pole Speakon connectors especially designed for heavy duty amplifier-loudspeaker applications like professional tour sound. The extremely rugged and durable STX Series feature an all metal housing and metal reinforced latch lock system.

Features:

  • Current rating 40 Amp continuous, 50 Amp audio with 50% duty cycle
  • Durable all metal housing
  • Reinforced metal quick lock system for ease and precise locking
  • Extra large solder contacts for up to 6mm² (AWG10) wires
  • Mate with all available Speakon® products

Specifications:

  • Connector Type: Speakon
  • Gender: female
  • Contact resistance:  </= 2 mOhm (after lifetime)
  • Dielectric strength: 4 kVdc (peak)
  • Insulation resistance: > 10 GOhm (after damp heat)
  • Rated current per contact: 40 A rms continuous
  • Rated current per contact: 50 A audiosignal, duty cycle 50%
  • Rated voltage: 250 V (insulation)
  • Cable O.D.: 8-20 mm
  • Cable retention force: >/= 220 N (subject to cable O.D. and material)
  • Lifetime: > 5000 mating cycles
  • Wire size: 6 mm²
  • Wire size: 10 AWG
  • Wiring: Solder contacts
  • Locking device: Quick Lock (hatch)
  • Bushing: Polyamide (PA 6 15% GR)
  • Contact plating: 4 µm Ag
  • Contacts: Brass (CuZn39Pb3)
  • Insert: Polyamide (PA 6 30% GR)
  • Locking element: Zinc diecast (ZnAl4Cu1)
  • Shell: Zinc diecast (ZnAl4Cu1)
  • Shell plating: Black chromium
  • Strain relief: Polyacetal (POM)
  • Flammability: UL 94 HB
  • Protection class: IP 52 (mated condition)
  • Solderability: Complies with IEC 68-2-20
  • Temperature range: -30 °C to +80 °C
