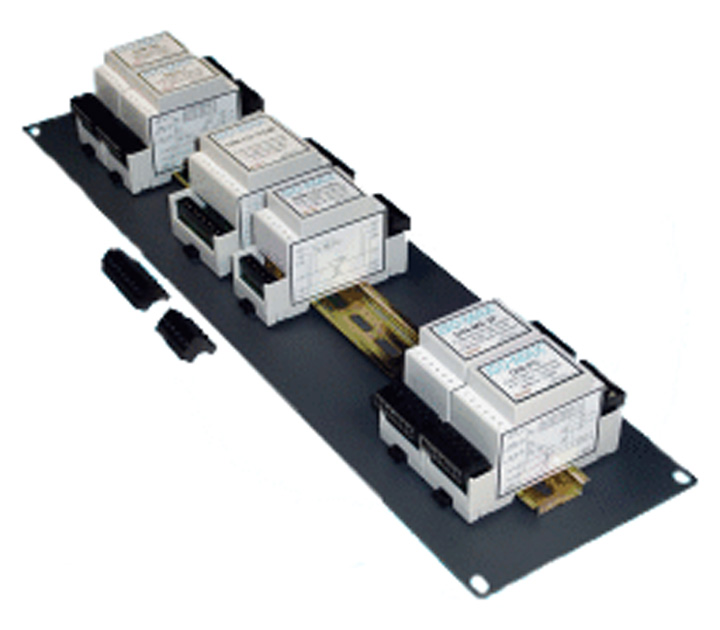

Jensen Transformers DIN-LO-11FL DIN Rail Line Output Module

Jensen Transformers' DIN-LO-11FL module is designed for high-performance line output stages. The 50% nickel alloy core gives it excellent distortion and level handling at a cost allowing many applications to enjoy the advantages of an output transformer. Driving signals should be free of DC and source impedance kept as low as possible.

Features:

• Distortion: 0.035% typ at 20 Hz and +4 dBu output level
• Wide bandwidth: -3 dB at 0.2 Hz and 15 MHz
• Drives 600 Ohm loads to levels up to +21 dBu at 20 Hz
• Excellent time domain performance: DLP 0.3° typ 20 Hz to 20 kHz
• Insertion loss only 1.6 dB when driving 600 Ohm load
