Quam SYSTEM-5/VC 12"x24" Tile Replacement Loudspeaker System, 25V/70V, Volume Control

OUR PART #: SYSTEM-5/VC

Copied to clipboard

The Quam SYSTEM 5 is a complete loudspeaker assembly, with 8" frame, perforated steel baffle and integral back box. It is intended for indoor and sheltered outdoor applications. ...Read more

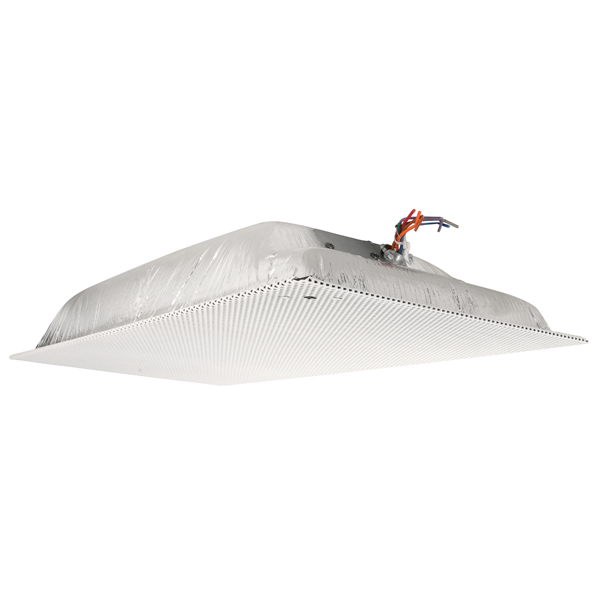

Quam SYSTEM-5/VC 12"x24" Tile Replacement Loudspeaker System, 25V/70V, Volume Control Image 1
Quam SYSTEM-5/VC 12"x24" Tile Replacement Loudspeaker System, 25V/70V, Volume Control
Our Price: $104.17
List Price: $124.20
You save 16%!

SPECIAL FINANCING AVAILABLE

Synchrony Music & Sound Card
$3/mo* with 36 month financing. ‡
Limited Time. Learn How
Item usually available to ship in 9-12 Business Days. Please call for up-to-date information on product availability.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

The Quam SYSTEM 5 is a complete loudspeaker assembly, with 8" frame, perforated steel baffle and integral back box. It is intended for indoor and sheltered outdoor applications. One 24" white "T" bar is supplied to finish the edge.

Transformer options include a 25 / 70.7V pigtail; 25V / 70.7V pigtail with Volume Control; 25V Rotary Select or 70.7V Rotary Select.

Specifications:

  • Loudspeaker: 25V / 70.7V / 5W pig-tail with volume control
  • Speaker Size: 8" frame
  • Average Sensitivity: 96dB SPL, 1W / 1M
  • Loudspeaker Power Rating: 12W RMS
  • Calculated Output: 103dB SPL, 5W / 1M
  • Magnet Type, Weight: BeFe Ceramic, 4.8oz.
  • Frequency Response: 65Hz – 17kHz
  • Nominal Coverage Angle: 100 degrees
  • Audio connection: 7" long labeled, tinned wires, pre-cut
