Atlas IED APF-15 15 Watts at 8 Ohms Flanged Horn Loudspeaker in Grey

OUR PART #: APF-15 MFR #: APF-15

Copied to clipboard

The Atals Sound APF-15 provides 15 watts of continuous power handling with superior intelligibility and efficiency. ...Read more

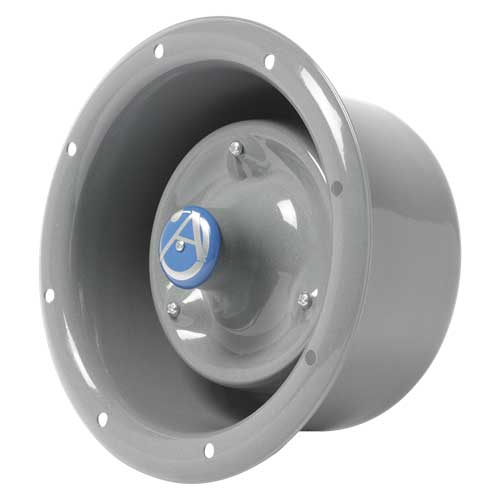

Atlas IED APF-15 15 Watts At 8 Ohms Flanged Horn Loudspeaker In Grey Image 1
Atlas IED APF-15 15 Watts At 8 Ohms Flanged Horn Loudspeaker In Grey
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

The Atals Sound APF-15 provides 15 watts of continuous power handling with superior intelligibility and efficiency. Magnet assembly is equipped with self-aligning field replaceable diaphragm. Weather-resistant metal construction and enclosed wiring terminals eliminate the need and cost of a backbox. However, for aesthetic consideration and retrofit convenience, models will flange mount to any standard size ceiling or wall baffle and/or enclosure capable of accommodating conventional 6" or 8" diameter loudspeakers. Recessed installation may be accomplished by mounting Model APF-15 into a 4" of 5 1/2" deep opening, or to an L20 Series enclosure. L20 Series also includes mounting rings and baffles. Loudspeaker is finished in grey baked epoxy.

Atlas Sound APF-15 Features:

  • 8-ohm Model
  • Choose from Matching Grilles, Enclosures and Mounting. Rings (Order Separately)
  • Double Re-Entrant Design Provides Superior Audibility of Voice and Tone Signaling
  • High-Efficiency, 15 Watt Compression Driver with Proven Record of Outstanding Service Reliability
  • May be Flange or Recess Mounted
  • Vandal and Environment-Resistant Metal Construction for Outdoor or Indoor Use

Atlas Sound APF-15 Specifications:

  • Frequency Response: 600 Hz - 14 kHz
  • Impedance: 8 Ohms
  • Dispersion: 95°
  • Power Rating: 15 Watts
  • Sensitivity: 104dB
  • Operating Range: -40° to 70° C
  • Depth: 3-7/16" (8.73252 cm)
  • Diameter: 5-5/8" (14.2875 cm)
  • Shipping Weight: 3.00 lbs (1.36 kgs)
  • UL Listed/Standard: 1480
