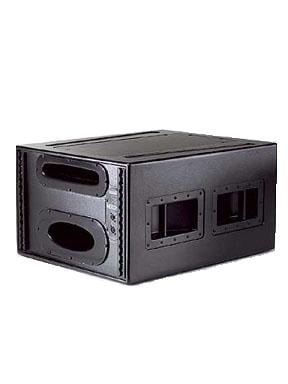

Nexo CD12-PF
Hypercardioid 12" Subwoofer

OUR PART #:  CD12-PF

The compact CD12 uses an innovative approach to the control of long wavelength low frequency acoustic energy.
Learn More

Call for price! Not available online.

Similar Products

The compact CD12 uses an innovative approach to the control of long wavelength low frequency acoustic energy. Sophisticated signal processing algorithms, individually applied to each of the dual-ported 12" woofers, produce substantial forward gain and more than 12 dB attenuation at the rear. The CD12 puts subbass energy where it is needed and keeps it away from open microphones and reverberant surfaces.

Features:

  • Dual 12", long-throw neodymium woofers
  • DSP-driven cardioid output with NX242 DigitalTDcontroller
  • Low-speed port geometry

Specifications:

  • Components: (2) 12" Long Excursion Neodymium 6ohmdrivers
  • Dimensions (HxWxD): 15-3/4" x 23-5/8" x 29-11/16"
  • Shape: Rectangular
  • Weight: 79 lbs.
  • Connectors: (2) NL4MP SPEAKON 4-pole (in &through)
  • Construction: Baltic Birch Ply finish with structuredblack coating. Dark gray carpet finish also available.
  • Frequency Response: 42 Hz – 200 Hz +/- 3 dB
  • Usable Range @ -6dB: 39Hz – 250 Hz
  • Sensitivity (1W @ 1M): 102 dB SPL Nominal
  • Peak SPL @ 1M: 131 to 134 dB Peak
  • Crossover Frequency: 150 Hz Active Through NX241Digital TDController
  • Nominal Impedance: 2 x 6 ohms
